Understanding output files

The automatic analysis performed by the FloorTools software generates several output files. This list of files made available depends on the type of analysis performed (Standard analysis = validation against OEM allowable / Non Standard analysis = comparative FE analysis with validated reference floor loading).

Output files are accessible under the pull down menu Deliverables of the result page.

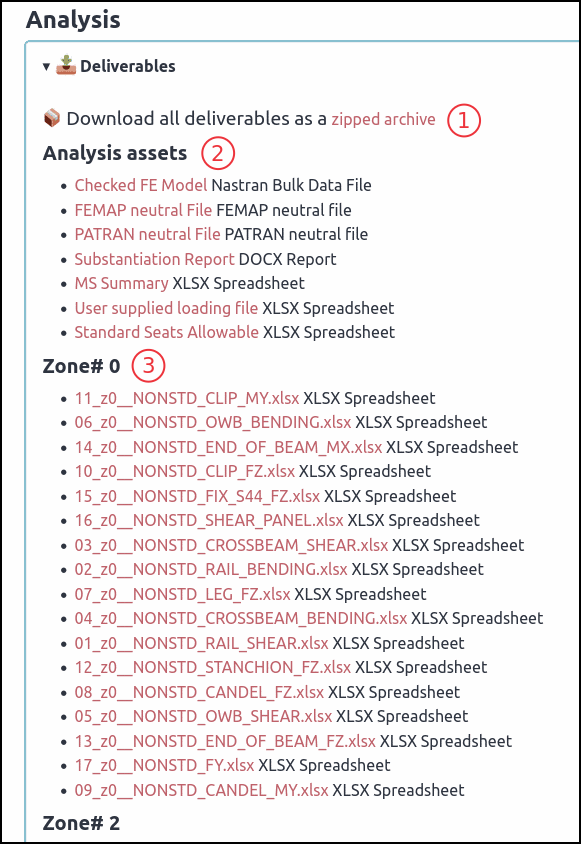

Fig. 77 Screenshot of FtoolsV3 deliverables drop-down list

Single Archive Download

Item (1) of Fig. 77 allows to download all deliverables as a single archive.

Analysis Assets

item (2) of Fig. 77 features general assets (ie. not AC zone relative).

Checked FE Model

The FE model of the floor structure loaded with user defined IFL is written in NASTRAN bulk data file. It can be imported in standard FE pre-processor like MSC PATRAN or SIEMENS FEMAP to perform spot check on user applied loading. Additionally the file can be run on NASTRAN FE solver and then some more checks could be done on critical FE results.

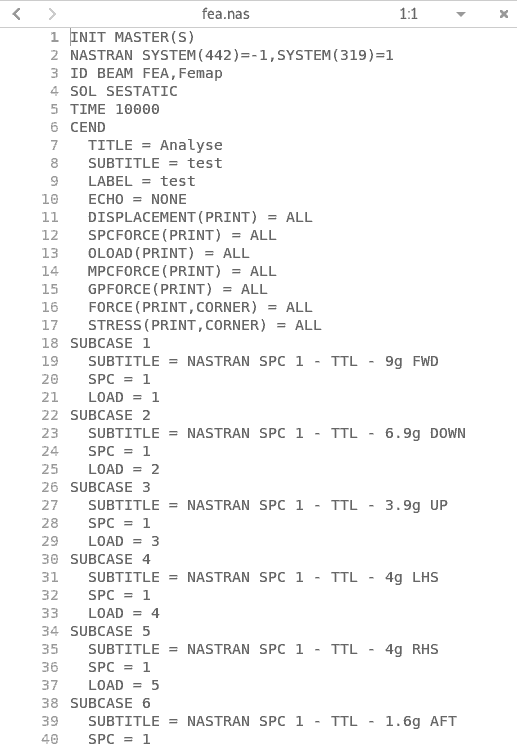

Fig. 78 NASTRAN Bulk Data File of Checked FE model

FEMAP neutral File

This asset is aimed to be loaded in FEMAP. It brings groups of nodes and eventually elements of miscellaneous items for an easier check of LOPA loading.

PATRAN neutral File

The same as FEMAP neutral export, but for PATRAN.

Substantiation Report

The main output of the FTools software is the complete Structural Substantiation report in Word format. This report is automatically generated by the FloorTools based on customer stylesheet for the document rendering and with some customized templates to control the output. As the report generated is in WORD format it can be freely modified and completed by the end user.

For the end user of the FTools it is important to understand that this report is made of static and dynamic text, pictures and tables coded in the templates.

A static text is a text that is written in the report template and won’t be change by the software. A dynamic text is a text that will be “adapted” by the software to match some input / output data. It becomes a contextual text.

Similarly a static image is stored in the report environment and will be incorporated in the SSR has it stands. In contrary a dynamic picture is automatically generated by the FTools to reflect FEM properties or FEM output.

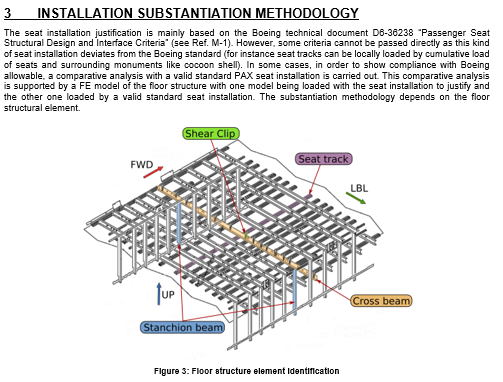

Here is an example of static figure:

Fig. 79 Example of SSR static figure

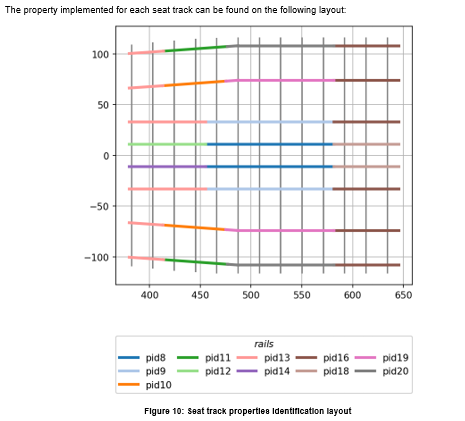

Here is an example of dynamic figure:

Fig. 80 Example of SSR dynamic figure

Same is valid for report table. Some tables are stored in the report template and are not modified by the FTools. Some other tables are automatically generated by the FTools based on FE properties and output.

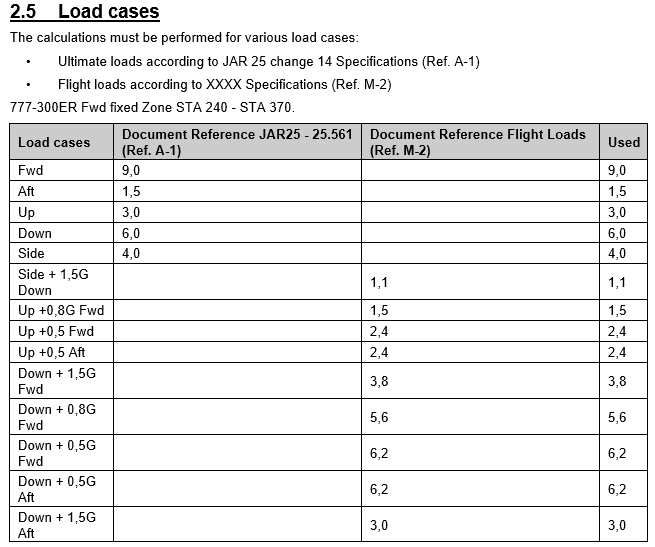

Here is an example of static table:

Fig. 81 Example of SSR static table

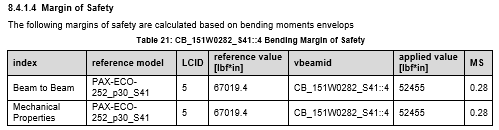

Here is an example of dynamic table:

Fig. 82 Example of SSR dynamic table

Note

As the report is based on stylesheet and templates, it is fully customizable and can be updated on request to numeric-GmbH.

User Supplied Loading File

The file uploaded by the FTools user is linked to the analysis for traceability purpose and can be downloaded at any time.

Standard allowable selection

This spreadsheet presents the data tables used for the automatic association of standard allowable to each seat. This spreadsheet should be read in association with the “Standard seat allowable” report. For standard seat analysis 16 different seating arrangements have been recorded. Each of them leads to different seat interface load allowable. Additionally, individual seat weight and seat row weight depend on those 16 different seating arrangements combined with a seat pitch. This combination generates 76 different seat and seat row weight possible allowable. In this “std_allowable_selection” spreadsheet the logic behind the automatic association of a seat IFL allowable and seat weight allowable is recorded.

Reading output spreadsheets

Item (3) of Fig. 77 allows to download individual checkers’ trace.

The FTools analysis output spreadsheets present a large amount of data in order to keep trace of all calculation steps leading to the margins of safety. Data dumped in those spreadsheets are reflecting the different tables computed internally by the software. They are not all formatted and structured to be easily readable by a end user. However, all of them have some commonalities in their structure and data presentation.

A logical way to read the different xls sheets within an output spreadsheet is to go from the left to the right. Leftmost sheets are gathering input data necessary for the analysis whereas rightmost sheets are presenting final Margins of safety.

Most of the sheets are generated from a Pandas DataFrame, which is a standard Python data manipulation module and one of the most popular tools used in data science and analysis tasks. In each sheet, the data in bold represents the column headers and row indices. Sometimes, rows may have duplicate values in the row indices, leading to merged row indices. Excel’s data filter may not work correctly with such merged row indices. To overcome this limitation, the row labels (or row identifiers) are usually repeated at the end of the presented data, in the last columns, without any row merging.

A detailed presentation of the spreadsheet / Sheet / field is detailed in the following chapters.

---

MS summary

“MS_summary”:

Checker ID: 00

This sheet presents the overall MS envelope, featuring the critical MS per checker.

Sheet "MS_summary/MS"

This Unique Sheet of the MS_summary spreadsheet describes the overall MS. It features one single row per checker with its critical Margin of Safety.

MS-vector

type: object examples: ['BENDING', 'FORCE', 'SHEAR']

The vector column describes the kind of loading analyzed.

MS-CID

type: int64 examples: [1, 2, 3]

The CID column describes the Checker ID at the origin of the analysis.

MS-section

type: object examples: ['section 44', 'section 43', 'section 41']

The section column shows the Aircraft section concerned by the row.

MS-item

type: object examples: ['LBL33::1', 4243, 'LBL108::LBL74']

MS-item-details

type: object examples: ['x=910.0', 'x=539.0', 'panel']

MS-LCID

type: int64 examples: [1, 2, 5]

The lcid involved in the calculation.

MS-axis

type: object examples: ['FX', 'fz', 'f2']

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

MS-units

type: object examples: ['lbf', 'lbf/in', 'lbf*in']

The physical units of the loading and reference value involved in the MS calculation.

MS-applied

type: float64 examples: [1.1, 3.0, -3702.3]

The applied value of the \(allowable / applied - 1\) MS equation

MS-allowable

type: float64 examples: [2183.5, 3210.8, 20632.9]

The allowable value of the \(allowable / applied - 1\) MS equation

MS-MS

type: object examples: ['+0.66', '+0.87', '>+2.00']

The dressed (cf. dressing) version of the _MS column.

MS-comment

type: object examples: ['Step2', nan]

MS-_MS

type: float64 examples: [0.362, 1.076, 0.696]

The _MS column shows the raw margin of safety before dressing. The dressed MS is shown in column MS.

Non-Standard Outputs

“NONSTD_RAIL_SHEAR”:

Checker ID: 01

Sheet "NONSTD_RAIL_SHEAR/beam_properties"

beam_properties-PID

type: int64 examples: [32, 33, 34]

beam_properties-E

type: int64 examples: [16900000, 10400000, 31626000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [0.8366, 0.9412, 0.9433]

beam_properties-I1

type: float64 examples: [0.6168, 0.5998, 0.6644]

beam_properties-I2

type: float64 examples: [0.3353, 0.3467, 0.3879]

beam_properties-type

type: object examples: ['rail']

beam_properties-zones

type: int64 examples: [0, 1]

beam_properties-sections

type: object examples: ['section 47', 'section 46', 'section 43']

beam_properties-xa

type: float64 examples: [2052.5, 2316.24, 413.2857]

beam_properties-xb

type: float64 examples: [1792.24, 2316.24, 2064.24]

Sheet "NONSTD_RAIL_SHEAR/all_allowable"

all_allowable-zone

type: int64 examples: [0, 1, 3]

all_allowable-section

type: object examples: ['section 47', 'section 44', 'section 43']

all_allowable-eid

type: int64 examples: [11904, 11905, 1186]

all_allowable-gid

type: int64 examples: [51744, 1346, 51877]

all_allowable-x

type: float64 examples: [2272.5433213777, 2337.24, 2274.24]

all_allowable-y

type: float64 examples: [33.0, 72.3398134692, 11.0]

all_allowable-value

type: float64 examples: [2467.16845703125, 2020.573120117188, 2921.750244140625]

all_allowable-abs_value

type: float64 examples: [2467.16845703125, 2020.573120117188, 2921.750244140625]

all_allowable-pid

type: int64 examples: [32, 33, 34]

all_allowable-lcid

type: int64 examples: [1, 2, 3]

all_allowable-vbeam_root_id

type: object examples: ['LBL11', 'RBL74', 'RBL11']

all_allowable-vbeamid

type: object examples: ['LBL108::4', 'LBL74::4', 'LBL11::0']

Sheet "NONSTD_RAIL_SHEAR/allowable"

allowable-ref_abs_value

type: float64 examples: [2817.9658203125, 5087.41943359375, 3048.099853515625]

allowable-ref

type: object examples: ['PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00']

allowable-ref_lcid

type: int64 examples: [1, 2, 3]

Sheet "NONSTD_RAIL_SHEAR/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45', 'section 43']

MS-type

type: object examples: ['rail']

MS-eid

type: int64 examples: [225, 226, 227]

MS-gid

type: int64 examples: [257, 258, 259]

MS-x

type: float64 examples: [1539.0, 2052.5, 1029.0]

MS-y

type: float64 examples: [11.0, -108.0, -107.843]

MS-value

type: float64 examples: [-0.8405776023864746, -0.6413815021514893, -0.7561013102531433]

MS-abs_value

type: float64 examples: [0.8405776023864746, 0.6413815021514893, 0.7561013102531433]

MS-ref

type: object examples: ['PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00']

MS-ref_abs_value

type: float64 examples: [2817.9658203125, 5087.41943359375, 3210.8173828125]

MS-ref_lcid

type: int64 examples: [1, 2, 3]

MS-MS

type: float64 examples: [0.9529300928115845, 0.9478836059570312, 2.509186267852783]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_RAIL_SHEAR/_crits_pre"

_crits_pre-vector

type: object examples: ['shear']

The vector column describes the kind of loading analyzed.

_crits_pre-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

_crits_pre-lcid

type: int64 examples: [1]

_crits_pre-seqitem

type: int64 examples: [50, 75, 52]

_crits_pre-ga/gb

type: object examples: ['ga', 'gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 43']

_crits_pre-type_x

type: object examples: ['rail']

_crits_pre-eid

type: int64 examples: [11653, 1574, 11654]

_crits_pre-gid

type: int64 examples: [52033, 1699, 51875]

_crits_pre-x

type: float64 examples: [1120.22, 1131.25, 910.0]

_crits_pre-y

type: int64 examples: [33, 74, 11]

_crits_pre-value

type: float64 examples: [2349.0224609375, 2349.034423828125, 1870.45703125]

_crits_pre-abs_value

type: float64 examples: [2349.0224609375, 2349.034423828125, 1870.45703125]

_crits_pre-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-03']

_crits_pre-ref_abs_value

type: float64 examples: [3210.8173828125, 3890.199951171875, 4702.83203125]

_crits_pre-ref_lcid

type: int64 examples: [1, 2, 3]

_crits_pre-MS

type: float64 examples: [0.9439151287078857, 0.9439173936843872, 1.00203800201416]

The dressed (cf. dressing) version of the _MS column.

_crits_pre-PID

type: int64 examples: [28, 36, 29]

_crits_pre-E

type: int64 examples: [10400000, 16900000]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [0.9412, 0.8447, 1.0483]

_crits_pre-I1

type: float64 examples: [0.5998, 0.6436, 0.8286]

_crits_pre-I2

type: float64 examples: [0.3467, 0.4477, 0.3421]

_crits_pre-type_y

type: object examples: ['rail']

_crits_pre-zones

type: int64 examples: [0, 1]

_crits_pre-sections

type: object examples: ['section 41', 'section 43']

_crits_pre-xa

type: float64 examples: [940.5, 581.5]

_crits_pre-xb

type: float64 examples: [593.27, 945.0, 950.0]

Sheet "NONSTD_RAIL_SHEAR/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['shear']

The vector column describes the kind of loading analyzed.

critical_beams_envelope-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

critical_beams_envelope-lcid

type: int64 examples: [1]

critical_beams_envelope-seqitem

type: int64 examples: [75]

critical_beams_envelope-ga/gb

type: object examples: ['gb']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 43']

critical_beams_envelope-type_x

type: object examples: ['rail']

critical_beams_envelope-eid

type: int64 examples: [11756]

critical_beams_envelope-gid

type: int64 examples: [1631]

critical_beams_envelope-x

type: float64 examples: [1078.22]

critical_beams_envelope-y

type: int64 examples: [-108]

critical_beams_envelope-value

type: float64 examples: [1651.727172851562]

critical_beams_envelope-abs_value

type: float64 examples: [1651.727172851562]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-343_p32-00']

critical_beams_envelope-ref_abs_value

type: float64 examples: [3210.8173828125]

critical_beams_envelope-ref_lcid

type: int64 examples: [3]

critical_beams_envelope-MS

type: float64 examples: [0.9439151287078857]

The dressed (cf. dressing) version of the _MS column.

critical_beams_envelope-PID

type: int64 examples: [31]

critical_beams_envelope-E

type: int64 examples: [10400000]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [0.9412]

critical_beams_envelope-I1

type: float64 examples: [0.5998]

critical_beams_envelope-I2

type: float64 examples: [0.3467]

critical_beams_envelope-type_y

type: object examples: ['rail']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 43']

critical_beams_envelope-xa

type: float64 examples: [940.5]

critical_beams_envelope-xb

type: int64 examples: [950]

Sheet "NONSTD_RAIL_SHEAR/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['RBL74::3', 'LBL108::4', 'RBL11::3']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-seqitem

type: int64 examples: [50, 75, 52]

MS_reduced-ga/gb

type: object examples: ['ga', 'gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 43']

MS_reduced-type

type: object examples: ['rail']

MS_reduced-eid

type: int64 examples: [11653, 1574, 11654]

MS_reduced-gid

type: int64 examples: [52033, 1699, 51875]

MS_reduced-x

type: float64 examples: [1120.22, 1131.25, 910.0]

MS_reduced-y

type: int64 examples: [33, 74, 11]

MS_reduced-value

type: float64 examples: [2349.0224609375, 2349.034423828125, 1870.45703125]

MS_reduced-abs_value

type: float64 examples: [2349.0224609375, 2349.034423828125, 1870.45703125]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-03']

MS_reduced-ref_abs_value

type: float64 examples: [3210.8173828125, 3890.199951171875, 4702.83203125]

MS_reduced-ref_lcid

type: int64 examples: [1, 2, 3]

MS_reduced-MS

type: float64 examples: [0.9439151287078857, 0.9439173936843872, 1.00203800201416]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_RAIL_BENDING”:

Checker ID: 02

Sheet "NONSTD_RAIL_BENDING/beam_properties"

beam_properties-PID

type: int64 examples: [32, 33, 34]

beam_properties-E

type: int64 examples: [16900000, 10400000, 31626000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [0.8366, 0.9412, 0.9433]

beam_properties-I1

type: float64 examples: [0.6168, 0.5998, 0.6644]

beam_properties-I2

type: float64 examples: [0.3353, 0.3467, 0.3879]

beam_properties-type

type: object examples: ['rail']

beam_properties-zones

type: int64 examples: [0, 1]

beam_properties-sections

type: object examples: ['section 47', 'section 46', 'section 43']

beam_properties-xa

type: float64 examples: [2052.5, 2316.24, 413.2857]

beam_properties-xb

type: float64 examples: [1792.24, 2316.24, 2064.24]

Sheet "NONSTD_RAIL_BENDING/all_allowable"

all_allowable-zone

type: int64 examples: [0, 2, 3]

all_allowable-section

type: object examples: ['section 45', 'section 43', 'section 41']

all_allowable-eid

type: int64 examples: [707, 12323, 714]

all_allowable-gid

type: int64 examples: [51744, 52227, 52229]

all_allowable-x

type: float64 examples: [738.0, 1635.0, 2344.3447895123]

all_allowable-y

type: float64 examples: [33.0, 66.9964707842, 11.0]

all_allowable-value

type: float64 examples: [-18077.17578125, -15069.720703125, 21669.0703125]

all_allowable-abs_value

type: float64 examples: [19842.25390625, 21669.0703125, 19303.962890625]

all_allowable-pid

type: int64 examples: [32, 33, 34]

all_allowable-lcid

type: int64 examples: [1, 2, 3]

all_allowable-vbeam_root_id

type: object examples: ['LBL11', 'RBL74', 'RBL11']

all_allowable-vbeamid

type: object examples: ['LBL74::4', 'LBL11::0', 'LBL108::2']

Sheet "NONSTD_RAIL_BENDING/allowable"

allowable-ref_abs_value

type: float64 examples: [17218.755859375, 26115.515625, 20071.048828125]

allowable-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-252_p30-02', 'PAX-ECO-343_p32-01']

allowable-ref_lcid

type: int64 examples: [1, 2, 3]

Sheet "NONSTD_RAIL_BENDING/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45', 'section 43']

MS-type

type: object examples: ['rail']

MS-eid

type: int64 examples: [225, 226, 227]

MS-gid

type: int64 examples: [257, 258, 259]

MS-x

type: float64 examples: [1539.0, 2052.5, 1029.0]

MS-y

type: float64 examples: [11.0, -108.0, -107.843]

MS-value

type: float64 examples: [0.4803909659385681, -0.04767342284321785, 0.06400556862354279]

MS-abs_value

type: float64 examples: [0.4803909659385681, 0.04767342284321785, 2.570206880569458]

MS-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-252_p30-02', 'PAX-ECO-343_p32-01']

MS-ref_abs_value

type: float64 examples: [17218.755859375, 26115.515625, 20071.048828125]

MS-ref_lcid

type: int64 examples: [1, 2, 3]

MS-MS

type: float64 examples: [0.8701424598693848, 1.782872200012207, 2.259751796722412]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_RAIL_BENDING/_crits_pre"

_crits_pre-vector

type: object examples: ['bending']

The vector column describes the kind of loading analyzed.

_crits_pre-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

_crits_pre-lcid

type: int64 examples: [1]

_crits_pre-seqitem

type: int64 examples: [64, 50, 58]

_crits_pre-ga/gb

type: object examples: ['gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 43']

_crits_pre-type_x

type: object examples: ['rail']

_crits_pre-eid

type: int64 examples: [800, 705, 806]

_crits_pre-gid

type: int64 examples: [51905, 51942, 51911]

_crits_pre-x

type: float64 examples: [968.25, 945.0, 1010.25]

_crits_pre-y

type: int64 examples: [33, 74, 11]

_crits_pre-value

type: float64 examples: [-9663.435546875, -14910.8251953125, -9662.92578125]

_crits_pre-abs_value

type: float64 examples: [9662.92578125, 11673.6982421875, 11662.6640625]

_crits_pre-ref

type: object examples: ['PAX-ECO-252_p30-02', 'PAX-BC-242_p42-00', 'PAX-ECO-343_p32-03']

_crits_pre-ref_abs_value

type: float64 examples: [20632.916015625, 17218.755859375, 26100.564453125]

_crits_pre-ref_lcid

type: int64 examples: [1, 2, 5]

_crits_pre-MS

type: float64 examples: [0.3837541341781616, 0.3842132091522217, 1.700961112976074]

The dressed (cf. dressing) version of the _MS column.

_crits_pre-PID

type: int64 examples: [28, 29, 30]

_crits_pre-E

type: int64 examples: [10400000]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [0.9645, 1.0213, 1.0483]

_crits_pre-I1

type: float64 examples: [0.8286, 0.9456, 0.5998]

_crits_pre-I2

type: float64 examples: [0.426, 0.4477, 0.3467]

_crits_pre-type_y

type: object examples: ['rail']

_crits_pre-zones

type: int64 examples: [1]

_crits_pre-sections

type: object examples: ['section 43']

_crits_pre-xa

type: float64 examples: [940.5]

_crits_pre-xb

type: int64 examples: [945, 950]

Sheet "NONSTD_RAIL_BENDING/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['bending']

The vector column describes the kind of loading analyzed.

critical_beams_envelope-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

critical_beams_envelope-lcid

type: int64 examples: [1]

critical_beams_envelope-seqitem

type: int64 examples: [53]

critical_beams_envelope-ga/gb

type: object examples: ['gb']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 43']

critical_beams_envelope-type_x

type: object examples: ['rail']

critical_beams_envelope-eid

type: int64 examples: [798]

critical_beams_envelope-gid

type: int64 examples: [51902]

critical_beams_envelope-x

type: float64 examples: [963.25]

critical_beams_envelope-y

type: int64 examples: [-33]

critical_beams_envelope-value

type: float64 examples: [-14910.8251953125]

critical_beams_envelope-abs_value

type: float64 examples: [14910.8251953125]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-252_p30-02']

critical_beams_envelope-ref_abs_value

type: float64 examples: [20632.916015625]

critical_beams_envelope-ref_lcid

type: int64 examples: [2]

critical_beams_envelope-MS

type: float64 examples: [0.3837541341781616]

The dressed (cf. dressing) version of the _MS column.

critical_beams_envelope-PID

type: int64 examples: [29]

critical_beams_envelope-E

type: int64 examples: [10400000]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [1.0213]

critical_beams_envelope-I1

type: float64 examples: [0.8286]

critical_beams_envelope-I2

type: float64 examples: [0.426]

critical_beams_envelope-type_y

type: object examples: ['rail']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 43']

critical_beams_envelope-xa

type: float64 examples: [940.5]

critical_beams_envelope-xb

type: int64 examples: [945]

Sheet "NONSTD_RAIL_BENDING/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['LBL108::4', 'LBL74::4', 'RBL11::3']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-seqitem

type: int64 examples: [64, 50, 58]

MS_reduced-ga/gb

type: object examples: ['gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 43']

MS_reduced-type

type: object examples: ['rail']

MS_reduced-eid

type: int64 examples: [800, 705, 806]

MS_reduced-gid

type: int64 examples: [51905, 51942, 51911]

MS_reduced-x

type: float64 examples: [968.25, 945.0, 1010.25]

MS_reduced-y

type: int64 examples: [33, 74, 11]

MS_reduced-value

type: float64 examples: [-9663.435546875, -14910.8251953125, -9662.92578125]

MS_reduced-abs_value

type: float64 examples: [9662.92578125, 11673.6982421875, 11662.6640625]

MS_reduced-ref

type: object examples: ['PAX-ECO-252_p30-02', 'PAX-BC-242_p42-00', 'PAX-ECO-343_p32-03']

MS_reduced-ref_abs_value

type: float64 examples: [20632.916015625, 17218.755859375, 26100.564453125]

MS_reduced-ref_lcid

type: int64 examples: [1, 2, 5]

MS_reduced-MS

type: float64 examples: [0.3837541341781616, 0.3842132091522217, 1.700961112976074]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_CROSSBEAM_SHEAR”:

Checker ID: 03

Sheet "NONSTD_CROSSBEAM_SHEAR/beam_properties"

beam_properties-PID

type: int64 examples: [2, 3, 4]

beam_properties-E

type: int64 examples: [6412800, 8412800, 6892000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [2.8554, 2.4915, 2.6943]

beam_properties-I1

type: float64 examples: [1.6987, 2.1474, 2.3079]

beam_properties-I2

type: float64 examples: [11.2456, 13.9274, 16.9868]

beam_properties-type

type: object examples: ['crossbeam']

beam_properties-zones

type: int64 examples: [0, 1]

beam_properties-sections

type: object examples: ['section 47', 'section 41', 'section 46']

beam_properties-xa

type: float64 examples: [1035.0, 2063.0, 529.0]

beam_properties-xb

type: float64 examples: [1035.0, 2063.0, 529.0]

Sheet "NONSTD_CROSSBEAM_SHEAR/all_allowable"

all_allowable-zone

type: int64 examples: [0, 1, 2]

all_allowable-section

type: object examples: ['section 47', 'section 46', 'section 43']

all_allowable-eid

type: int64 examples: [480, 39, 3848]

all_allowable-gid

type: int64 examples: [197, 549, 2375]

all_allowable-x

type: float64 examples: [1728.0, 2336.0, 2210.0]

all_allowable-y

type: float64 examples: [66.0533, 69.47, 69.1798]

all_allowable-value

type: float64 examples: [3200.816162109375, -2983.37451171875, 3138.62158203125]

all_allowable-abs_value

type: float64 examples: [3200.816162109375, 3138.62158203125, 3359.939453125]

all_allowable-pid

type: int64 examples: [2, 3, 4]

all_allowable-lcid

type: int64 examples: [1, 5]

all_allowable-vbeam_root_id

type: object examples: ['STA1664', 'STA1434+147', 'STA951']

all_allowable-vbeamid

type: object examples: ['STA1434+84::0', 'STA1937::0', 'STA592::0']

Sheet "NONSTD_CROSSBEAM_SHEAR/allowable"

allowable-ref_abs_value

type: float64 examples: [4035.431884765625, 3972.6376953125, 2983.37451171875]

allowable-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00']

allowable-ref_lcid

type: int64 examples: [1, 5]

Sheet "NONSTD_CROSSBEAM_SHEAR/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-type

type: object examples: ['crossbeam']

MS-eid

type: int64 examples: [2049, 2051, 2053]

MS-gid

type: int64 examples: [2049, 2051, 2053]

MS-x

type: float64 examples: [2432.5, 1665.0, 1929.0]

MS-y

type: float64 examples: [11.0, 33.0, 60.43613]

MS-value

type: float64 examples: [-2.760963616310619e-05, -4.176039965386735e-06, 6.581280558748404e-06]

MS-abs_value

type: float64 examples: [2.760963616310619e-05, 4.176039965386735e-06, 6.581280558748404e-06]

MS-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00']

MS-ref_abs_value

type: float64 examples: [4035.431884765625, 3972.6376953125, 2983.37451171875]

MS-ref_lcid

type: int64 examples: [1, 5]

MS-MS

type: float64 examples: [385957986304.0, 94584725504.0, 163914989568.0]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_CROSSBEAM_SHEAR/_crits_pre"

_crits_pre-vector

type: object examples: ['shear']

The vector column describes the kind of loading analyzed.

_crits_pre-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

_crits_pre-lcid

type: int64 examples: [1, 2]

_crits_pre-seqitem

type: int64 examples: [1, 2, 3]

_crits_pre-ga/gb

type: object examples: ['ga', 'gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 47', 'section 46', 'section 43']

_crits_pre-type_x

type: object examples: ['crossbeam']

_crits_pre-eid

type: int64 examples: [1537, 514, 2049]

_crits_pre-gid

type: int64 examples: [2177, 641, 1668]

_crits_pre-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

_crits_pre-y

type: float64 examples: [11.0, -115.6, -109.4]

_crits_pre-value

type: float64 examples: [-0.001004027551971376, 0.0002091566275339574, -510.3092956542969]

_crits_pre-abs_value

type: float64 examples: [0.001004027551971376, 0.0002091566275339574, 0.0008487639133818448]

_crits_pre-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00']

_crits_pre-ref_abs_value

type: float64 examples: [4035.431884765625, 3972.6376953125, 2983.37451171875]

_crits_pre-ref_lcid

type: int64 examples: [1, 5]

_crits_pre-MS

type: float64 examples: [0.7416870594024658, 0.7759504318237305, 0.81770920753479]

The dressed (cf. dressing) version of the _MS column.

_crits_pre-PID

type: int64 examples: [2, 4, 6]

_crits_pre-E

type: int64 examples: [8412800, 6892000, 6412800]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [2.4915, 2.6394, 2.7583]

_crits_pre-I1

type: float64 examples: [1.6987, 2.0288, 2.1474]

_crits_pre-I2

type: float64 examples: [16.9868, 17.5923, 18.2359]

_crits_pre-type_y

type: object examples: ['crossbeam']

_crits_pre-zones

type: int64 examples: [1]

_crits_pre-sections

type: object examples: ['section 47', 'section 46', 'section 43']

_crits_pre-xa

type: float64 examples: [2432.5, 1665.0, 1161.0]

_crits_pre-xb

type: float64 examples: [2432.5, 1665.0, 1161.0]

Sheet "NONSTD_CROSSBEAM_SHEAR/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['shear']

The vector column describes the kind of loading analyzed.

critical_beams_envelope-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

critical_beams_envelope-lcid

type: int64 examples: [2]

critical_beams_envelope-seqitem

type: int64 examples: [3]

critical_beams_envelope-ga/gb

type: object examples: ['ga']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 43']

critical_beams_envelope-type_x

type: object examples: ['crossbeam']

critical_beams_envelope-eid

type: int64 examples: [214]

critical_beams_envelope-gid

type: int64 examples: [245]

critical_beams_envelope-x

type: int64 examples: [993]

critical_beams_envelope-y

type: float64 examples: [-83.1]

critical_beams_envelope-value

type: float64 examples: [2232.59130859375]

critical_beams_envelope-abs_value

type: float64 examples: [2232.59130859375]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-343_p32-03']

critical_beams_envelope-ref_abs_value

type: float64 examples: [3888.475341796875]

critical_beams_envelope-ref_lcid

type: int64 examples: [5]

critical_beams_envelope-MS

type: float64 examples: [0.7416870594024658]

The dressed (cf. dressing) version of the _MS column.

critical_beams_envelope-PID

type: int64 examples: [2]

critical_beams_envelope-E

type: int64 examples: [6887700]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [2.4915]

critical_beams_envelope-I1

type: float64 examples: [1.6987]

critical_beams_envelope-I2

type: float64 examples: [16.9868]

critical_beams_envelope-type_y

type: object examples: ['crossbeam']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 43']

critical_beams_envelope-xa

type: int64 examples: [993]

critical_beams_envelope-xb

type: int64 examples: [993]

Sheet "NONSTD_CROSSBEAM_SHEAR/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['STA1014::0', 'STA1937::0', 'STA1874::0']

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-seqitem

type: int64 examples: [1, 2, 3]

MS_reduced-ga/gb

type: object examples: ['ga', 'gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS_reduced-type

type: object examples: ['crossbeam']

MS_reduced-eid

type: int64 examples: [1537, 514, 2049]

MS_reduced-gid

type: int64 examples: [2177, 641, 1668]

MS_reduced-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

MS_reduced-y

type: float64 examples: [11.0, -115.6, -109.4]

MS_reduced-value

type: float64 examples: [-0.001004027551971376, 0.0002091566275339574, -510.3092956542969]

MS_reduced-abs_value

type: float64 examples: [0.001004027551971376, 0.0002091566275339574, 0.0008487639133818448]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00']

MS_reduced-ref_abs_value

type: float64 examples: [4035.431884765625, 3972.6376953125, 2983.37451171875]

MS_reduced-ref_lcid

type: int64 examples: [1, 5]

MS_reduced-MS

type: float64 examples: [0.7416870594024658, 0.7759504318237305, 0.81770920753479]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_CROSSBEAM_BENDING”:

Checker ID: 04

Sheet "NONSTD_CROSSBEAM_BENDING/beam_properties"

beam_properties-PID

type: int64 examples: [2, 3, 4]

beam_properties-E

type: int64 examples: [6412800, 8412800, 6892000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [2.8554, 2.4915, 2.6943]

beam_properties-I1

type: float64 examples: [1.6987, 2.1474, 2.3079]

beam_properties-I2

type: float64 examples: [11.2456, 13.9274, 16.9868]

beam_properties-type

type: object examples: ['crossbeam']

beam_properties-zones

type: int64 examples: [0, 1]

beam_properties-sections

type: object examples: ['section 47', 'section 41', 'section 46']

beam_properties-xa

type: float64 examples: [1035.0, 2063.0, 529.0]

beam_properties-xb

type: float64 examples: [1035.0, 2063.0, 529.0]

Sheet "NONSTD_CROSSBEAM_BENDING/all_allowable"

all_allowable-zone

type: int64 examples: [0, 1, 2]

all_allowable-section

type: object examples: ['section 47', 'section 46', 'section 43']

all_allowable-eid

type: int64 examples: [3840, 1633, 1249]

all_allowable-gid

type: int64 examples: [1760, 2371, 1990]

all_allowable-x

type: float64 examples: [1728.0, 993.0, 2273.0]

all_allowable-y

type: float64 examples: [11.0, 83.1, -11.0]

all_allowable-value

type: float64 examples: [67904.3046875, -64699.6484375, -66871.2890625]

all_allowable-abs_value

type: float64 examples: [67904.3046875, 30555.296875, 70023.265625]

all_allowable-pid

type: int64 examples: [2, 3, 4]

all_allowable-lcid

type: int64 examples: [1, 5]

all_allowable-vbeam_root_id

type: object examples: ['STA825+168', 'STA1664', 'STA951']

all_allowable-vbeamid

type: object examples: ['STA825+63::0', 'STA1434+84::0', 'STA1874::0']

Sheet "NONSTD_CROSSBEAM_BENDING/allowable"

allowable-ref_abs_value

type: float64 examples: [82402.75, 79336.03125, 78696.4375]

allowable-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-00']

allowable-ref_lcid

type: int64 examples: [1, 5]

Sheet "NONSTD_CROSSBEAM_BENDING/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-type

type: object examples: ['crossbeam']

MS-eid

type: int64 examples: [2049, 2051, 2053]

MS-gid

type: int64 examples: [2049, 2051, 2053]

MS-x

type: float64 examples: [2432.5, 1665.0, 1929.0]

MS-y

type: float64 examples: [11.0, 33.0, 60.43613]

MS-value

type: float64 examples: [-3.845423270831816e-05, 0.0001713790115900338, 0.0001719032879918814]

MS-abs_value

type: float64 examples: [3.845423270831816e-05, 0.0001713790115900338, 0.0001719032879918814]

MS-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-00']

MS-ref_abs_value

type: float64 examples: [82402.75, 78696.4375, 75242.0703125]

MS-ref_lcid

type: int64 examples: [1, 5]

MS-MS

type: float64 examples: [197201002496.0, 2436235264.0, 2.60400652885437]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_CROSSBEAM_BENDING/_crits_pre"

_crits_pre-vector

type: object examples: ['bending']

The vector column describes the kind of loading analyzed.

_crits_pre-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

_crits_pre-lcid

type: int64 examples: [1, 2]

_crits_pre-seqitem

type: int64 examples: [1, 2, 3]

_crits_pre-ga/gb

type: object examples: ['ga', 'gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 47', 'section 46', 'section 43']

_crits_pre-type_x

type: object examples: ['crossbeam']

_crits_pre-eid

type: int64 examples: [2049, 514, 643]

_crits_pre-gid

type: int64 examples: [1664, 1921, 775]

_crits_pre-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

_crits_pre-y

type: float64 examples: [-95.6522, 97.02307, 67.6166]

_crits_pre-value

type: float64 examples: [-0.003249368630349636, -0.004288049880415201, -0.003093741601333022]

_crits_pre-abs_value

type: float64 examples: [0.003249368630349636, 0.004288049880415201, 0.003764883847907186]

_crits_pre-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-00']

_crits_pre-ref_abs_value

type: float64 examples: [82402.75, 78696.4375, 24266.173828125]

_crits_pre-ref_lcid

type: int64 examples: [1, 5]

_crits_pre-MS

type: float64 examples: [0.6768689155578613, 0.706576943397522, 0.7775541543960571]

The dressed (cf. dressing) version of the _MS column.

_crits_pre-PID

type: int64 examples: [2, 4, 6]

_crits_pre-E

type: int64 examples: [6892000, 8412800, 6412800]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [2.4915, 2.6394, 2.6943]

_crits_pre-I1

type: float64 examples: [1.6987, 2.0288, 2.1474]

_crits_pre-I2

type: float64 examples: [16.9868, 17.5923, 18.2359]

_crits_pre-type_y

type: object examples: ['crossbeam']

_crits_pre-zones

type: int64 examples: [1]

_crits_pre-sections

type: object examples: ['section 47', 'section 46', 'section 43']

_crits_pre-xa

type: float64 examples: [2432.5, 1665.0, 1161.0]

_crits_pre-xb

type: float64 examples: [2432.5, 1665.0, 1161.0]

Sheet "NONSTD_CROSSBEAM_BENDING/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['bending']

The vector column describes the kind of loading analyzed.

critical_beams_envelope-axis

type: int64 examples: [2]

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

critical_beams_envelope-lcid

type: int64 examples: [2]

critical_beams_envelope-seqitem

type: int64 examples: [2]

critical_beams_envelope-ga/gb

type: object examples: ['gb']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 43']

critical_beams_envelope-type_x

type: object examples: ['crossbeam']

critical_beams_envelope-eid

type: int64 examples: [825]

critical_beams_envelope-gid

type: int64 examples: [245]

critical_beams_envelope-x

type: int64 examples: [993]

critical_beams_envelope-y

type: float64 examples: [-83.1]

critical_beams_envelope-value

type: float64 examples: [44870.57421875]

critical_beams_envelope-abs_value

type: float64 examples: [44870.57421875]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-252_p30-00']

critical_beams_envelope-ref_abs_value

type: float64 examples: [75242.0703125]

critical_beams_envelope-ref_lcid

type: int64 examples: [5]

critical_beams_envelope-MS

type: float64 examples: [0.6768689155578613]

The dressed (cf. dressing) version of the _MS column.

critical_beams_envelope-PID

type: int64 examples: [2]

critical_beams_envelope-E

type: int64 examples: [6887700]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [2.4915]

critical_beams_envelope-I1

type: float64 examples: [1.6987]

critical_beams_envelope-I2

type: float64 examples: [16.9868]

critical_beams_envelope-type_y

type: object examples: ['crossbeam']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 43']

critical_beams_envelope-xa

type: int64 examples: [993]

critical_beams_envelope-xb

type: int64 examples: [993]

Sheet "NONSTD_CROSSBEAM_BENDING/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['STA1014::0', 'STA1874::0', 'STA1937::0']

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-seqitem

type: int64 examples: [1, 2, 3]

MS_reduced-ga/gb

type: object examples: ['ga', 'gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS_reduced-type

type: object examples: ['crossbeam']

MS_reduced-eid

type: int64 examples: [2049, 514, 643]

MS_reduced-gid

type: int64 examples: [1664, 1921, 775]

MS_reduced-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

MS_reduced-y

type: float64 examples: [-95.6522, 97.02307, 67.6166]

MS_reduced-value

type: float64 examples: [-0.003249368630349636, -0.004288049880415201, -0.003093741601333022]

MS_reduced-abs_value

type: float64 examples: [0.003249368630349636, 0.004288049880415201, 0.003764883847907186]

MS_reduced-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-00']

MS_reduced-ref_abs_value

type: float64 examples: [82402.75, 78696.4375, 24266.173828125]

MS_reduced-ref_lcid

type: int64 examples: [1, 5]

MS_reduced-MS

type: float64 examples: [0.6768689155578613, 0.706576943397522, 0.7775541543960571]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_OWB_SHEAR”:

Checker ID: 05

Sheet "NONSTD_OWB_SHEAR/beam_properties"

beam_properties-PID

type: int64 examples: [1024, 1025, 1026]

beam_properties-E

type: int64 examples: [10600000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [1.411, 1.4582, 1.4446]

beam_properties-I1

type: float64 examples: [0.0111, 0.0091, 0.0066]

beam_properties-I2

type: float64 examples: [2.4808, 3.1476, 2.4831]

beam_properties-type

type: object examples: ['owb']

beam_properties-zones

type: int64 examples: [1]

beam_properties-sections

type: object examples: ['section 44', 'section 44-section 45', 'section 43-section 44']

beam_properties-xa

type: float64 examples: [1281.5, 1410.5, 1287.5]

beam_properties-xb

type: float64 examples: [1282.89, 1412.89, 1287.89]

Sheet "NONSTD_OWB_SHEAR/all_allowable"

all_allowable-zone

type: int64 examples: [1, 2]

all_allowable-section

type: object examples: ['section 44', 'section 43']

all_allowable-eid

type: int64 examples: [4354, 4356, 263]

all_allowable-gid

type: int64 examples: [2817, 3844, 2822]

all_allowable-x

type: float64 examples: [1284.5, 1413.5, 1290.5]

all_allowable-y

type: int64 examples: [33, -74, -33]

all_allowable-value

type: float64 examples: [-1383.701782226562, -1382.005004882812, -1381.32958984375]

all_allowable-abs_value

type: float64 examples: [2462.0185546875, 2975.19287109375, 2720.435302734375]

all_allowable-pid

type: int64 examples: [1024, 1025, 1026]

all_allowable-lcid

type: int64 examples: [1, 2, 3]

all_allowable-vbeam_root_id

type: object examples: ['L-OWB-BL74', 'R-OWB-BL33', 'L-OWB-BL33']

all_allowable-vbeamid

type: object examples: ['R-OWB-BL33::31', 'L-OWB-BL33::32', 'L-OWB-BL33::34']

Sheet "NONSTD_OWB_SHEAR/allowable"

allowable-ref_abs_value

type: float64 examples: [3716.52392578125, 2438.708251953125, 2440.714111328125]

allowable-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00', 'PAX-ECO-252_p30-02']

allowable-ref_lcid

type: int64 examples: [1, 2, 5]

Sheet "NONSTD_OWB_SHEAR/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45', 'section 43']

MS-type

type: object examples: ['owb']

MS-eid

type: int64 examples: [3261, 3263, 3264]

MS-gid

type: int64 examples: [4153, 4154, 4155]

MS-x

type: float64 examples: [1240.2, 1241.5, 1242.89]

MS-y

type: int64 examples: [33, 74, 11]

MS-value

type: float64 examples: [-0.438077837228775, -0.4382266104221344, 0.7737095355987549]

MS-abs_value

type: float64 examples: [0.438077837228775, 0.4382266104221344, 0.7737095355987549]

MS-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00', 'PAX-ECO-252_p30-02']

MS-ref_abs_value

type: float64 examples: [3716.52392578125, 2438.708251953125, 2440.714111328125]

MS-ref_lcid

type: int64 examples: [1, 2, 5]

MS-MS

type: float64 examples: [7856131.0, 16418.400390625, 8227.2783203125]

Sheet "NONSTD_OWB_SHEAR/_crits_pre"

_crits_pre-vector

type: object examples: ['shear']

_crits_pre-axis

type: int64 examples: [2]

_crits_pre-lcid

type: int64 examples: [2]

_crits_pre-seqitem

type: int64 examples: [3, 4, 71]

_crits_pre-ga/gb

type: object examples: ['ga', 'gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 44']

_crits_pre-type_x

type: object examples: ['owb']

_crits_pre-eid

type: int64 examples: [3971, 4292, 3140]

_crits_pre-gid

type: int64 examples: [2496, 4225, 3205]

_crits_pre-x

type: float64 examples: [1242.5, 1362.89, 1365.5]

_crits_pre-y

type: int64 examples: [33, 74, 11]

_crits_pre-value

type: float64 examples: [-5.122694969177246, -21.97726440429688, -21.9708423614502]

_crits_pre-abs_value

type: float64 examples: [5.122694969177246, 5.124360084533691, 11.08769226074219]

_crits_pre-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-03']

_crits_pre-ref_abs_value

type: float64 examples: [1010.693115234375, 4555.3125]

_crits_pre-ref_lcid

type: int64 examples: [1]

_crits_pre-MS

type: float64 examples: [196.2971496582031, 196.2330322265625, 409.8496398925781]

_crits_pre-PID

type: int64 examples: [1024, 1000]

_crits_pre-E

type: int64 examples: [10600000]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [1.7824, 1.411]

_crits_pre-I1

type: float64 examples: [0.0111, 0.0067]

_crits_pre-I2

type: float64 examples: [10.4599, 2.4808]

_crits_pre-type_y

type: object examples: ['owb']

_crits_pre-zones

type: int64 examples: [1]

_crits_pre-sections

type: object examples: ['section 44', 'section 43-section 44']

_crits_pre-xa

type: float64 examples: [1240.2, 1362.5]

_crits_pre-xb

type: float64 examples: [1241.5, 1362.89]

Sheet "NONSTD_OWB_SHEAR/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['shear']

critical_beams_envelope-axis

type: int64 examples: [2]

critical_beams_envelope-lcid

type: int64 examples: [2]

critical_beams_envelope-seqitem

type: int64 examples: [71]

critical_beams_envelope-ga/gb

type: object examples: ['ga']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 44']

critical_beams_envelope-type_x

type: object examples: ['owb']

critical_beams_envelope-eid

type: int64 examples: [3971]

critical_beams_envelope-gid

type: int64 examples: [3205]

critical_beams_envelope-x

type: float64 examples: [1362.89]

critical_beams_envelope-y

type: int64 examples: [-11]

critical_beams_envelope-value

type: float64 examples: [-5.124360084533691]

critical_beams_envelope-abs_value

type: float64 examples: [5.124360084533691]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-343_p32-03']

critical_beams_envelope-ref_abs_value

type: float64 examples: [1010.693115234375]

critical_beams_envelope-ref_lcid

type: int64 examples: [1]

critical_beams_envelope-MS

type: float64 examples: [196.2330322265625]

critical_beams_envelope-PID

type: int64 examples: [1024]

critical_beams_envelope-E

type: int64 examples: [10600000]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [1.7824]

critical_beams_envelope-I1

type: float64 examples: [0.0067]

critical_beams_envelope-I2

type: float64 examples: [10.4599]

critical_beams_envelope-type_y

type: object examples: ['owb']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 44']

critical_beams_envelope-xa

type: float64 examples: [1362.5]

critical_beams_envelope-xb

type: float64 examples: [1362.89]

Sheet "NONSTD_OWB_SHEAR/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['R-OWB-BL33::0', 'R-OWB-BL74::0', 'L-OWB-BL11::24']

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-seqitem

type: int64 examples: [3, 4, 71]

MS_reduced-ga/gb

type: object examples: ['ga', 'gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44']

MS_reduced-type

type: object examples: ['owb']

MS_reduced-eid

type: int64 examples: [3971, 4292, 3140]

MS_reduced-gid

type: int64 examples: [2496, 4225, 3205]

MS_reduced-x

type: float64 examples: [1242.5, 1362.89, 1365.5]

MS_reduced-y

type: int64 examples: [33, 74, 11]

MS_reduced-value

type: float64 examples: [-5.122694969177246, -21.97726440429688, -21.9708423614502]

MS_reduced-abs_value

type: float64 examples: [5.122694969177246, 5.124360084533691, 11.08769226074219]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-03']

MS_reduced-ref_abs_value

type: float64 examples: [1010.693115234375, 4555.3125]

MS_reduced-ref_lcid

type: int64 examples: [1]

MS_reduced-MS

type: float64 examples: [196.2971496582031, 196.2330322265625, 409.8496398925781]

“NONSTD_OWB_BENDING”:

Checker ID: 06

Sheet "NONSTD_OWB_BENDING/beam_properties"

beam_properties-PID

type: int64 examples: [1024, 1025, 1026]

beam_properties-E

type: int64 examples: [10600000]

beam_properties-NU

type: float64 examples: [0.33]

beam_properties-A

type: float64 examples: [1.411, 1.4582, 1.4446]

beam_properties-I1

type: float64 examples: [0.0111, 0.0091, 0.0066]

beam_properties-I2

type: float64 examples: [2.4808, 3.1476, 2.4831]

beam_properties-type

type: object examples: ['owb']

beam_properties-zones

type: int64 examples: [1]

beam_properties-sections

type: object examples: ['section 44', 'section 44-section 45', 'section 43-section 44']

beam_properties-xa

type: float64 examples: [1281.5, 1410.5, 1287.5]

beam_properties-xb

type: float64 examples: [1282.89, 1412.89, 1287.89]

Sheet "NONSTD_OWB_BENDING/all_allowable"

all_allowable-zone

type: int64 examples: [1, 2]

all_allowable-section

type: object examples: ['section 44']

all_allowable-eid

type: int64 examples: [4353, 4354, 260]

all_allowable-gid

type: int64 examples: [2567, 2570, 2573]

all_allowable-x

type: float64 examples: [1410.5, 1287.5, 1416.5]

all_allowable-y

type: int64 examples: [33, -74, -33]

all_allowable-value

type: float64 examples: [10113.97265625, 7042.41162109375, 17154.15234375]

all_allowable-abs_value

type: float64 examples: [10113.97265625, 7042.41162109375, 17154.15234375]

all_allowable-pid

type: int64 examples: [1024, 1025, 1026]

all_allowable-lcid

type: int64 examples: [1, 2, 3]

all_allowable-vbeam_root_id

type: object examples: ['L-OWB-BL74', 'L-OWB-BL33', 'R-OWB-BL33']

all_allowable-vbeamid

type: object examples: ['L-OWB-BL74::45', 'R-OWB-BL33::0', 'L-OWB-BL33::32']

Sheet "NONSTD_OWB_BENDING/allowable"

allowable-ref_abs_value

type: float64 examples: [15233.15625, 19720.26171875, 13325.0146484375]

allowable-ref

type: object examples: ['PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00']

allowable-ref_lcid

type: int64 examples: [1, 2, 4]

Sheet "NONSTD_OWB_BENDING/MS"

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45', 'section 43']

MS-type

type: object examples: ['owb']

MS-eid

type: int64 examples: [3261, 3263, 3264]

MS-gid

type: int64 examples: [4153, 4154, 4155]

MS-x

type: float64 examples: [1240.2, 1241.5, 1242.89]

MS-y

type: int64 examples: [33, 74, 11]

MS-value

type: float64 examples: [-0.4131712317466736, -0.7198212742805481, -0.6264878511428833]

MS-abs_value

type: float64 examples: [0.4131712317466736, 1.188563585281372, 1.727851152420044]

MS-ref

type: object examples: ['PAX-ECO-252_p30-01', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-00']

MS-ref_abs_value

type: float64 examples: [15233.15625, 19720.26171875, 13325.0146484375]

MS-ref_lcid

type: int64 examples: [1, 2, 4]

MS-MS

type: float64 examples: [8.195275201131315e+17, 3.798170284297552e+18, 4.902862535985725e+18]

Sheet "NONSTD_OWB_BENDING/_crits_pre"

_crits_pre-vector

type: object examples: ['bending']

_crits_pre-axis

type: int64 examples: [2]

_crits_pre-lcid

type: int64 examples: [2]

_crits_pre-seqitem

type: int64 examples: [4]

_crits_pre-ga/gb

type: object examples: ['gb']

_crits_pre-zone

type: int64 examples: [1]

_crits_pre-section

type: object examples: ['section 44']

_crits_pre-type_x

type: object examples: ['owb']

_crits_pre-eid

type: int64 examples: [992, 3142, 4294]

_crits_pre-gid

type: int64 examples: [2497, 4155, 3757]

_crits_pre-x

type: float64 examples: [1243.29]

_crits_pre-y

type: int64 examples: [33, 74, 11]

_crits_pre-value

type: float64 examples: [126.170295715332, 56.67044448852539, 122.6706237792969]

_crits_pre-abs_value

type: float64 examples: [126.170295715332, 56.67044448852539, 122.6706237792969]

_crits_pre-ref

type: object examples: ['PAX-ECO-343_p32-03']

_crits_pre-ref_abs_value

type: float64 examples: [12745.2255859375]

_crits_pre-ref_lcid

type: int64 examples: [1]

_crits_pre-MS

type: float64 examples: [223.9007568359375, 100.0632705688477, 100.0160522460938]

_crits_pre-PID

type: int64 examples: [1000]

_crits_pre-E

type: int64 examples: [10600000]

_crits_pre-NU

type: float64 examples: [0.33]

_crits_pre-A

type: float64 examples: [1.411]

_crits_pre-I1

type: float64 examples: [0.0111]

_crits_pre-I2

type: float64 examples: [2.4808]

_crits_pre-type_y

type: object examples: ['owb']

_crits_pre-zones

type: int64 examples: [1]

_crits_pre-sections

type: object examples: ['section 43-section 44']

_crits_pre-xa

type: float64 examples: [1240.2]

_crits_pre-xb

type: float64 examples: [1241.5]

Sheet "NONSTD_OWB_BENDING/critical_beams_envelope"

critical_beams_envelope-vector

type: object examples: ['bending']

critical_beams_envelope-axis

type: int64 examples: [2]

critical_beams_envelope-lcid

type: int64 examples: [2]

critical_beams_envelope-seqitem

type: int64 examples: [4]

critical_beams_envelope-ga/gb

type: object examples: ['gb']

critical_beams_envelope-zone

type: int64 examples: [1]

critical_beams_envelope-section

type: object examples: ['section 44']

critical_beams_envelope-type_x

type: object examples: ['owb']

critical_beams_envelope-eid

type: int64 examples: [992]

critical_beams_envelope-gid

type: int64 examples: [3155]

critical_beams_envelope-x

type: float64 examples: [1243.29]

critical_beams_envelope-y

type: int64 examples: [-11]

critical_beams_envelope-value

type: float64 examples: [126.170295715332]

critical_beams_envelope-abs_value

type: float64 examples: [126.170295715332]

critical_beams_envelope-ref

type: object examples: ['PAX-ECO-343_p32-03']

critical_beams_envelope-ref_abs_value

type: float64 examples: [12745.2255859375]

critical_beams_envelope-ref_lcid

type: int64 examples: [1]

critical_beams_envelope-MS

type: float64 examples: [100.0160522460938]

critical_beams_envelope-PID

type: int64 examples: [1000]

critical_beams_envelope-E

type: int64 examples: [10600000]

critical_beams_envelope-NU

type: float64 examples: [0.33]

critical_beams_envelope-A

type: float64 examples: [1.411]

critical_beams_envelope-I1

type: float64 examples: [0.0111]

critical_beams_envelope-I2

type: float64 examples: [2.4808]

critical_beams_envelope-type_y

type: object examples: ['owb']

critical_beams_envelope-zones

type: int64 examples: [1]

critical_beams_envelope-sections

type: object examples: ['section 43-section 44']

critical_beams_envelope-xa

type: float64 examples: [1240.2]

critical_beams_envelope-xb

type: float64 examples: [1241.5]

Sheet "NONSTD_OWB_BENDING/MS_reduced"

MS_reduced-vbeamid

type: object examples: ['R-OWB-BL33::0', 'L-OWB-BL11::0', 'R-OWB-BL11::0']

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-seqitem

type: int64 examples: [4]

MS_reduced-ga/gb

type: object examples: ['gb']

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44']

MS_reduced-type

type: object examples: ['owb']

MS_reduced-eid

type: int64 examples: [992, 3142, 4294]

MS_reduced-gid

type: int64 examples: [2497, 4155, 3757]

MS_reduced-x

type: float64 examples: [1243.29]

MS_reduced-y

type: int64 examples: [33, 74, 11]

MS_reduced-value

type: float64 examples: [126.170295715332, 56.67044448852539, 122.6706237792969]

MS_reduced-abs_value

type: float64 examples: [126.170295715332, 56.67044448852539, 122.6706237792969]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-03']

MS_reduced-ref_abs_value

type: float64 examples: [12745.2255859375]

MS_reduced-ref_lcid

type: int64 examples: [1]

MS_reduced-MS

type: float64 examples: [223.9007568359375, 100.0632705688477, 100.0160522460938]

“NONSTD_LEG_FZ”:

Checker ID: 07

Sheet "NONSTD_LEG_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [568770, 2328300, 1338800]

spring_properties-K2

type: int64 examples: [500000]

spring_properties-K3

type: float64 examples: [11342.55, 57520.69, 24336.53]

spring_properties-K4

type: int64 examples: [500000]

spring_properties-K5

type: int64 examples: [361540000, 11492000, 4804800]

spring_properties-K6

type: int64 examples: [500000]

spring_properties-zone

type: int64 examples: [1]

Sheet "NONSTD_LEG_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [8, 5, 6]

all_allowable-eid

type: int64 examples: [3141, 4380, 279]

all_allowable-is_ac_axis

type: bool examples: [False]

all_allowable-local_axis_value

type: float64 examples: [7.875341892242432, -216.9494171142578, -3.893342971801758]

all_allowable-value

type: float64 examples: [-2143.37643911715, -4666.4228515625, -1868.456707852456]

all_allowable-abs_value

type: float64 examples: [2599.485658484513, 1868.456707852456, 2200.286583126902]

all_allowable-zone

type: int64 examples: [1, 2]

all_allowable-section

type: object examples: ['section 44']

Sheet "NONSTD_LEG_FZ/allowable"

allowable-1053

type: int64 examples: [1056, 1057, 1054]

Sheet "NONSTD_LEG_FZ/MS"

MS-eid

type: int64 examples: [4613, 5266, 3988]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.0, 0.9638233250783932, 2.072169000783558]

MS-abs_value

type: float64 examples: [0.0, 1.082639460579111, 1.443519038544769]

MS-x

type: float64 examples: [1290.584, 1290.79, 1338.0]

MS-y

type: int64 examples: [33, 74, 11]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44']

MS-ref_abs_value

type: float64 examples: [7588.84375, 3015.595746363176, 4435.485665413818]

MS-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-03']

MS-ref_lcid

type: int64 examples: [5, 6]

MS-MS

type: float64 examples: [15878.48090092173, 86539.97051035055, 1081.834933005241]

Sheet "NONSTD_LEG_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [4293, 3956, 3988]

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-value

type: float64 examples: [7.008310794830322, -22.63032648247388, -1.382036647100588]

MS_reduced-abs_value

type: float64 examples: [1.382036647100588, 1.851493667218784, 4.591794848490308]

MS_reduced-x

type: float64 examples: [1290.584, 1456.19, 1395.602]

MS_reduced-y

type: int64 examples: [33, -11]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44']

MS_reduced-ref_abs_value

type: float64 examples: [7588.84375, 3015.595746363176, 4435.485665413818]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-03']

MS_reduced-ref_lcid

type: int64 examples: [5, 6]

MS_reduced-MS

type: float64 examples: [932.4451786083482, 168.1983743629033, 3208.383538938089]

“NONSTD_CANDEL_FZ”:

Checker ID: 08

Seat Track Support Vertical Force FZ

Sheet "NONSTD_CANDEL_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [75875, 3365, 269400]

spring_properties-K2

type: float64 examples: [18593.0, 100260.0, nan]

spring_properties-K3

type: int64 examples: [221280, 305630, 89031]

spring_properties-K4

type: float64 examples: [28288.0, 56320.0, 40362.0]

spring_properties-K5

type: int64 examples: [50342, 180490, 49554]

spring_properties-K6

type: int64 examples: [13632, 2913, 47472]

spring_properties-zone

type: int64 examples: [1]

Sheet "NONSTD_CANDEL_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 4, 5]

all_allowable-eid

type: int64 examples: [10406, 10503, 2951]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [2796.331787109375, -3060.799072265625, -1649.75927734375]

all_allowable-value

type: float64 examples: [2796.331787109375, -3060.799072265625, -1649.75927734375]

all_allowable-abs_value

type: float64 examples: [2086.185791015625, 1354.1455078125, 2796.331787109375]

all_allowable-zone

type: int64 examples: [1, 2]

all_allowable-section

type: object examples: ['section 44', 'section 45']

Sheet "NONSTD_CANDEL_FZ/allowable"

allowable-1058

type: int64 examples: [1059, 1060, 1061]

Sheet "NONSTD_CANDEL_FZ/MS"

MS-eid

type: int64 examples: [3099, 3100, 3101]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [-0.009094193577766418, -0.009919624775648117, -0.007725289091467857]

MS-abs_value

type: float64 examples: [0.009094193577766418, 0.009919624775648117, 0.007725289091467857]

MS-x

type: float64 examples: [1539.0, 1412.79, 1287.0]

MS-y

type: int64 examples: [33, 74, 11]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45']

MS-ref_abs_value

type: float64 examples: [3258.85595703125, 2507.25537109375, 1388.726806640625]

MS-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-BC-242_p42-00', 'PAX-ECO-343_p32-01']

MS-ref_lcid

type: int64 examples: [1, 3, 4]

MS-MS

type: float64 examples: [45056.7974254675, 1972224.585266941, 2217988.525872494]

Sheet "NONSTD_CANDEL_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [10306, 10503, 10409]

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-value

type: float64 examples: [0.6039654612541199, 1.050629496574402, -0.1000940725207329]

MS_reduced-abs_value

type: float64 examples: [0.6039654612541199, 1.050629496574402, 0.1000940725207329]

MS_reduced-x

type: float64 examples: [1644.0, 1644.575, 1518.0]

MS_reduced-y

type: int64 examples: [108, 11, -108]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44', 'section 45']

MS_reduced-ref_abs_value

type: float64 examples: [3258.85595703125, 2507.25537109375, 1388.726806640625]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-BC-242_p42-00', 'PAX-ECO-343_p32-01']

MS_reduced-ref_lcid

type: int64 examples: [1, 3, 4]

MS_reduced-MS

type: float64 examples: [583104.2763786404, 280131.1593357917, 1320.804509742584]

“NONSTD_CANDEL_MY”:

Checker ID: 09

Sheet "NONSTD_CANDEL_MY/spring_properties"

spring_properties-K1

type: int64 examples: [75875, 3365, 269400]

spring_properties-K2

type: float64 examples: [nan, 18593.0, 100260.0]

spring_properties-K3

type: int64 examples: [221280, 305630, 89031]

spring_properties-K4

type: float64 examples: [28288.0, 56320.0, nan]

spring_properties-K5

type: int64 examples: [50342, 180490, 49554]

spring_properties-K6

type: int64 examples: [13632, 2913, 47472]

spring_properties-zone

type: int64 examples: [1]

Sheet "NONSTD_CANDEL_MY/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 4]

all_allowable-eid

type: int64 examples: [10306, 10503, 10506]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [-319.1123352050781, -605.1351318359375, -1011.98876953125]

all_allowable-value

type: float64 examples: [-319.1123352050781, -605.1351318359375, -1011.98876953125]

all_allowable-abs_value

type: float64 examples: [477.5894470214844, 997.0910034179688, 679.427001953125]

all_allowable-zone

type: int64 examples: [1, 2]

all_allowable-section

type: object examples: ['section 44', 'section 45']

Sheet "NONSTD_CANDEL_MY/allowable"

allowable-1058

type: int64 examples: [1059, 1060, 1061]

Sheet "NONSTD_CANDEL_MY/MS"

MS-eid

type: int64 examples: [3099, 3100, 3101]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.04092154651880264, 0.03475705534219742, -0.02312724106013775]

MS-abs_value

type: float64 examples: [0.04092154651880264, 0.03475705534219742, 0.02312724106013775]

MS-x

type: float64 examples: [1539.0, 1412.79, 1287.0]

MS-y

type: int64 examples: [33, 74, 11]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44', 'section 45']

MS-ref_abs_value

type: float64 examples: [2113.8857421875, 1382.314819335938, 903.6464233398438]

MS-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-02']

MS-ref_lcid

type: int64 examples: [1, 3]

MS-MS

type: float64 examples: [8208.745083457748, 8209.379885018023, 8209.930189150587]

Sheet "NONSTD_CANDEL_MY/MS_reduced"

MS_reduced-eid

type: int64 examples: [10306, 10503, 11209]

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-value

type: float64 examples: [-0.4806023836135864, 0.07823123037815094, 2.997098922729492]

MS_reduced-abs_value

type: float64 examples: [0.4806023836135864, 0.07823123037815094, 2.997098922729492]

MS_reduced-x

type: float64 examples: [1412.79, 1644.0, 1644.575]

MS_reduced-y

type: int64 examples: [108, 11, -108]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44', 'section 45']

MS_reduced-ref_abs_value

type: float64 examples: [2113.8857421875, 1382.314819335938, 903.6464233398438]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-01', 'PAX-ECO-343_p32-02']

MS_reduced-ref_lcid

type: int64 examples: [1, 3]

MS_reduced-MS

type: float64 examples: [704.3106342790849, 17668.60346467977, 14481767.50423947]

“NONSTD_CLIP_FZ”:

Checker ID: 10

Sheet "NONSTD_CLIP_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [28952, 31459, 37571]

spring_properties-K2

type: int64 examples: [6080, 6081, 5953]

spring_properties-K3

type: int64 examples: [191680, 225120, 164450]

spring_properties-K4

type: int64 examples: [40577, 42276, 40999]

spring_properties-K5

type: int64 examples: [85280, 86849, 97847]

spring_properties-K6

type: int64 examples: [7104, 6660, 8742]

spring_properties-zone

type: int64 examples: [0, 1]

Sheet "NONSTD_CLIP_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 4, 6]

all_allowable-eid

type: int64 examples: [2785, 4193, 2561]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [-991.17578125, -1822.763793945312, 2820.339111328125]

all_allowable-value

type: float64 examples: [-991.17578125, -1822.763793945312, 2820.339111328125]

all_allowable-abs_value

type: float64 examples: [2820.339111328125, 1480.192016601562, 2314.840087890625]

all_allowable-zone

type: int64 examples: [0, 1, 2]

all_allowable-section

type: object examples: ['section 47', 'section 41', 'section 46']

Sheet "NONSTD_CLIP_FZ/allowable"

allowable-47

type: int64 examples: [49, 50, 51]

Sheet "NONSTD_CLIP_FZ/MS"

MS-eid

type: int64 examples: [4180, 4181, 4182]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.0, 1.273814082145691, 2.720390558242798]

MS-abs_value

type: float64 examples: [0.0, 1.273814082145691, 2.720390558242798]

MS-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

MS-y

type: float64 examples: [11.0, -108.0, -107.964]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-ref_abs_value

type: float64 examples: [2338.964599609375, 2820.339111328125, 2053.495361328125]

MS-ref

type: object examples: ['PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-01']

MS-ref_lcid

type: int64 examples: [1, 2, 4]

MS-MS

type: float64 examples: [0.7817545701821658, 1.016191150531128, 2.438224665166125]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_CLIP_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [2849, 4194, 4193]

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-value

type: float64 examples: [1312.800048828125, -0.0005430806195363402, -801.08837890625]

MS_reduced-abs_value

type: float64 examples: [1312.800048828125, 801.08837890625, 0.0005430806195363402]

MS_reduced-x

type: int64 examples: [2336, 1665, 930]

MS_reduced-y

type: float64 examples: [33.0, 74.0, 11.0]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS_reduced-ref_abs_value

type: float64 examples: [2338.964599609375, 2820.339111328125, 2053.495361328125]

MS_reduced-ref

type: object examples: ['PAX-BC-242_p36-00', 'PAX-ECO-343_p32-00', 'PAX-ECO-343_p32-01']

MS_reduced-ref_lcid

type: int64 examples: [1, 2, 4]

MS_reduced-MS

type: float64 examples: [0.7816609632954075, 1.265509913042937, 2.904070024362607]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_CLIP_MY”:

Checker ID: 11

Sheet "NONSTD_CLIP_MY/spring_properties"

spring_properties-K1

type: int64 examples: [28952, 31459, 37571]

spring_properties-K2

type: int64 examples: [6080, 6081, 5953]

spring_properties-K3

type: int64 examples: [191680, 225120, 164450]

spring_properties-K4

type: int64 examples: [40577, 42276, 40999]

spring_properties-K5

type: int64 examples: [85280, 86849, 97847]

spring_properties-K6

type: int64 examples: [7104, 6660, 8742]

spring_properties-zone

type: int64 examples: [0, 1]

Sheet "NONSTD_CLIP_MY/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 5, 6]

all_allowable-eid

type: int64 examples: [2368, 4193, 4192]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [1568.146728515625, 1476.172485351562, -763.1754150390625]

all_allowable-value

type: float64 examples: [1568.146728515625, 1476.172485351562, -763.1754150390625]

all_allowable-abs_value

type: float64 examples: [1568.146728515625, 1476.172485351562, 840.6989135742188]

all_allowable-zone

type: int64 examples: [0, 1, 2]

all_allowable-section

type: object examples: ['section 47', 'section 41', 'section 46']

Sheet "NONSTD_CLIP_MY/allowable"

allowable-47

type: int64 examples: [49, 50, 51]

Sheet "NONSTD_CLIP_MY/MS"

MS-eid

type: int64 examples: [4180, 4181, 4182]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.0, -0.0807306244969368, -0.1076429933309555]

MS-abs_value

type: float64 examples: [0.0, 0.0807306244969368, 0.1076429933309555]

MS-x

type: float64 examples: [2432.5, 1665.0, 1161.0]

MS-y

type: float64 examples: [11.0, -108.0, -107.964]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-ref_abs_value

type: float64 examples: [1217.09033203125, 1793.551635742188, 1838.838745117188]

MS-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-BC-242_p42-00', 'PAX-ECO-252_p30-01']

MS-ref_lcid

type: int64 examples: [1, 2, 4]

MS-MS

type: float64 examples: [0.8779130837316771, 1.026881911631289, 2.642799337012356]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_CLIP_MY/MS_reduced"

MS_reduced-eid

type: int64 examples: [4193, 2853, 3082]

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-value

type: float64 examples: [0.0003457594139035791, 0.0002543344453442842, -0.0002656517026480287]

MS_reduced-abs_value

type: float64 examples: [0.0003457594139035791, 0.0002543344453442842, 0.0002504488511476666]

MS_reduced-x

type: int64 examples: [2336, 930, 2315]

MS_reduced-y

type: float64 examples: [33.0, 74.0, 11.0]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS_reduced-ref_abs_value

type: float64 examples: [1217.09033203125, 1793.551635742188, 974.9679565429688]

MS_reduced-ref

type: object examples: ['PAX-ECO-252_p30-00', 'PAX-BC-242_p42-00', 'PAX-ECO-252_p30-01']

MS_reduced-ref_lcid

type: int64 examples: [1, 2, 4]

MS_reduced-MS

type: float64 examples: [0.8779130837316771, 1.001197273272051, 1.832365754108486]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_STANCHION_FZ”:

Checker ID: 12

Sheet "NONSTD_STANCHION_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [31000, 28000, 40000]

spring_properties-K2

type: float64 examples: [nan, nan, nan]

spring_properties-K3

type: float64 examples: [nan, nan, nan]

spring_properties-K4

type: float64 examples: [nan, nan, nan]

spring_properties-K5

type: float64 examples: [nan, nan, nan]

spring_properties-K6

type: float64 examples: [nan, nan, nan]

spring_properties-zone

type: int64 examples: [0, 1]

Sheet "NONSTD_STANCHION_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 5]

all_allowable-eid

type: int64 examples: [3836, 5, 572]

all_allowable-is_ac_axis

type: bool examples: [False]

all_allowable-local_axis_value

type: int64 examples: [0]

all_allowable-value

type: float64 examples: [-5280.45751953125, -1597.392822265625, -3477.264892578125]

all_allowable-abs_value

type: float64 examples: [5280.45751953125, 5003.78125, 1597.392822265625]

all_allowable-zone

type: int64 examples: [0, 3]

all_allowable-section

type: object examples: ['section 46', 'section 41']

Sheet "NONSTD_STANCHION_FZ/allowable"

allowable-18

type: int64 examples: [19, 20, 21]

Sheet "NONSTD_STANCHION_FZ/MS"

MS-eid

type: int64 examples: [1538, 516, 1540]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.1209840327501297, 0.1613144725561142, 0.0]

MS-abs_value

type: float64 examples: [0.1209840327501297, 0.1613144725561142, 0.0]

MS-x

type: float64 examples: [2432.5, 1665.0, 1929.0]

MS-y

type: float64 examples: [-83.1, -80.7, -78.4]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-ref_abs_value

type: float64 examples: [6049.95166015625, 5755.55419921875]

MS-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-03']

MS-ref_lcid

type: int64 examples: [5]

MS-MS

type: float64 examples: [0.8212972980998039, 1.159153263047835, 2.060435147984438]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_STANCHION_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [1476, 3887]

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-value

type: float64 examples: [-3341.4189453125, 0.0002636497665662318]

MS_reduced-abs_value

type: float64 examples: [3341.4189453125, 0.0002636497665662318]

MS_reduced-x

type: int64 examples: [2466, 1077]

MS_reduced-y

type: float64 examples: [-83.1, 63.7]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 43']

MS_reduced-ref_abs_value

type: float64 examples: [6049.95166015625, 5755.55419921875]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-02', 'PAX-ECO-343_p32-03']

MS_reduced-ref_lcid

type: int64 examples: [5]

MS_reduced-MS

type: float64 examples: [0.8105935709269283, 21830301.65559855]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_END_OF_BEAM_FZ”:

Checker ID: 13

Sheet "NONSTD_END_OF_BEAM_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [1000000000]

spring_properties-K2

type: int64 examples: [1000000000]

spring_properties-K3

type: int64 examples: [1000000000]

spring_properties-K4

type: int64 examples: [10400000, 12000000, 6000000]

spring_properties-K5

type: float64 examples: [nan, nan, nan]

spring_properties-K6

type: float64 examples: [nan, nan, nan]

spring_properties-zone

type: int64 examples: [0, 1]

Sheet "NONSTD_END_OF_BEAM_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 4]

all_allowable-eid

type: int64 examples: [3832, 113, 2]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [-1711.845581054688, 580.1404418945312, 3261.22021484375]

all_allowable-value

type: float64 examples: [-1711.845581054688, 580.1404418945312, 3261.22021484375]

all_allowable-abs_value

type: float64 examples: [1658.880493164062, 580.1404418945312, 3261.22021484375]

all_allowable-zone

type: int64 examples: [0, 3]

all_allowable-section

type: object examples: ['section 47', 'section 43', 'section 41']

Sheet "NONSTD_END_OF_BEAM_FZ/allowable"

allowable-23

type: int64 examples: [24, 25, 26]

Sheet "NONSTD_END_OF_BEAM_FZ/MS"

MS-eid

type: int64 examples: [512, 513, 519]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.01889994367957115, 0.02519903890788555, 0.0]

MS-abs_value

type: float64 examples: [0.01889994367957115, 0.02519903890788555, 0.0]

MS-x

type: float64 examples: [2432.5, 1665.0, 1929.0]

MS-y

type: float64 examples: [-115.6, -113.5, -111.5]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-ref_abs_value

type: float64 examples: [3261.22021484375, 2183.476806640625]

MS-ref

type: object examples: ['PAX-BC-242_p42-00', 'PAX-BC-242_p36-00']

MS-ref_lcid

type: int64 examples: [1]

MS-MS

type: float64 examples: [1.346495207320701, 107538433.9946676, 3.02822747822562]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_END_OF_BEAM_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [688, 190]

MS_reduced-lcid

type: int64 examples: [1, 2]

MS_reduced-value

type: float64 examples: [0.001004027551971376, 1577.441162109375]

MS_reduced-abs_value

type: float64 examples: [0.001004027551971376, 1577.441162109375]

MS_reduced-x

type: int64 examples: [2416, 930]

MS_reduced-y

type: float64 examples: [97.3, -115.6]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 47', 'section 43']

MS_reduced-ref_abs_value

type: float64 examples: [3261.22021484375, 2183.476806640625]

MS_reduced-ref

type: object examples: ['PAX-BC-242_p42-00', 'PAX-BC-242_p36-00']

MS_reduced-ref_lcid

type: int64 examples: [1]

MS_reduced-MS

type: float64 examples: [0.3841890645993105, 3248137.169555655]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_END_OF_BEAM_MX”:

Checker ID: 14

Sheet "NONSTD_END_OF_BEAM_MX/spring_properties"

spring_properties-K1

type: int64 examples: [1000000000]

spring_properties-K2

type: int64 examples: [1000000000]

spring_properties-K3

type: int64 examples: [1000000000]

spring_properties-K4

type: int64 examples: [10400000, 12000000, 6000000]

spring_properties-K5

type: float64 examples: [nan, nan, nan]

spring_properties-K6

type: float64 examples: [nan, nan, nan]

spring_properties-zone

type: int64 examples: [0, 1]

Sheet "NONSTD_END_OF_BEAM_MX/all_allowable"

all_allowable-lcid

type: int64 examples: [1, 5]

all_allowable-eid

type: int64 examples: [3832, 9, 659]

all_allowable-is_ac_axis

type: bool examples: [True]

all_allowable-local_axis_value

type: float64 examples: [30136.654296875, -15422.1904296875, -37358.29296875]

all_allowable-value

type: float64 examples: [30136.654296875, -15422.1904296875, -37358.29296875]

all_allowable-abs_value

type: float64 examples: [30136.654296875, 40026.48046875, 37358.29296875]

all_allowable-zone

type: int64 examples: [0, 3]

all_allowable-section

type: object examples: ['section 47', 'section 41']

Sheet "NONSTD_END_OF_BEAM_MX/allowable"

allowable-23

type: int64 examples: [24, 25, 26]

Sheet "NONSTD_END_OF_BEAM_MX/MS"

MS-eid

type: int64 examples: [512, 513, 519]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.2738815248012543, 0.3651861548423767, 0.0]

MS-abs_value

type: float64 examples: [0.2738815248012543, 0.3651861548423767, 0.0]

MS-x

type: float64 examples: [2432.5, 1665.0, 1929.0]

MS-y

type: float64 examples: [-115.6, -113.5, -111.5]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 47', 'section 46', 'section 43']

MS-ref_abs_value

type: float64 examples: [40026.48046875, 34135.38671875]

MS-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-BC-242_p36-00']

MS-ref_lcid

type: int64 examples: [5]

MS-MS

type: float64 examples: [1.725144752652044, 2.592012957071838, 3.343769403402441]

The dressed (cf. dressing) version of the _MS column.

Sheet "NONSTD_END_OF_BEAM_MX/MS_reduced"

MS_reduced-eid

type: int64 examples: [624, 211]

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-value

type: float64 examples: [-0.00397118367254734, -14985.5537109375]

MS_reduced-abs_value

type: float64 examples: [0.00397118367254734, 14985.5537109375]

MS_reduced-x

type: int64 examples: [993, 2231]

MS_reduced-y

type: float64 examples: [-115.6]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 46', 'section 43']

MS_reduced-ref_abs_value

type: float64 examples: [40026.48046875, 34135.38671875]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00', 'PAX-BC-242_p36-00']

MS_reduced-ref_lcid

type: int64 examples: [5]

MS_reduced-MS

type: float64 examples: [1.277886248129465, 10079230.72767145]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_FIX_S44_FZ”:

Checker ID: 15

Sheet "NONSTD_FIX_S44_FZ/spring_properties"

spring_properties-K1

type: int64 examples: [1000000]

spring_properties-K2

type: int64 examples: [1000000]

spring_properties-K3

type: int64 examples: [1000000]

spring_properties-K4

type: int64 examples: [1000000]

spring_properties-K5

type: int64 examples: [1000000]

spring_properties-K6

type: int64 examples: [1000000]

spring_properties-zone

type: int64 examples: [1]

Sheet "NONSTD_FIX_S44_FZ/all_allowable"

all_allowable-lcid

type: int64 examples: [3]

all_allowable-eid

type: int64 examples: [2456]

all_allowable-is_ac_axis

type: bool examples: [False]

all_allowable-local_axis_value

type: float64 examples: [248.3940277099609]

all_allowable-value

type: float64 examples: [-3347.166547779825]

all_allowable-abs_value

type: float64 examples: [3347.166547779825]

all_allowable-zone

type: int64 examples: [2]

all_allowable-section

type: object examples: ['section 44']

Sheet "NONSTD_FIX_S44_FZ/allowable"

allowable-1052

type: object examples: []

Sheet "NONSTD_FIX_S44_FZ/MS"

MS-eid

type: int64 examples: [2141, 2143, 2145]

MS-lcid

type: int64 examples: [1, 2, 3]

MS-value

type: float64 examples: [0.0, 6.034565740264952e-05, 0.0003765965811908245]

MS-abs_value

type: float64 examples: [0.0, 6.034565740264952e-05, 0.0003765965811908245]

MS-x

type: float64 examples: [1242.5, 1245.5, 1248.5]

MS-y

type: int64 examples: [33, 74, 11]

MS-zone

type: int64 examples: [1]

MS-section

type: object examples: ['section 44']

MS-ref_abs_value

type: float64 examples: [5047.2138671875]

MS-ref

type: object examples: ['PAX-ECO-343_p32-00']

MS-ref_lcid

type: int64 examples: [1]

MS-MS

type: float64 examples: [9150465.415514126, 9289730.435123563, 1798742019.711174]

Sheet "NONSTD_FIX_S44_FZ/MS_reduced"

MS_reduced-eid

type: int64 examples: [4243]

MS_reduced-lcid

type: int64 examples: [2]

MS_reduced-value

type: float64 examples: [0.1162166371941566]

MS_reduced-abs_value

type: float64 examples: [0.1162166371941566]

MS_reduced-x

type: float64 examples: [1242.5]

MS_reduced-y

type: int64 examples: [-11]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 44']

MS_reduced-ref_abs_value

type: float64 examples: [5047.2138671875]

MS_reduced-ref

type: object examples: ['PAX-ECO-343_p32-00']

MS_reduced-ref_lcid

type: int64 examples: [1]

MS_reduced-MS

type: float64 examples: [43428.35735401982]

“NONSTD_SHEAR_PANEL”:

Checker ID: 16

Sheet "NONSTD_SHEAR_PANEL/allowable"

allowable-allowable

type: int64 examples: [105, 299, 196]

The allowable value of the \(allowable / applied - 1\) MS equation

Sheet "NONSTD_SHEAR_PANEL/Applied Loads"

Applied Loads-rail

type: object examples: ['LBL11', 'RBL74', 'RBL11']

Applied Loads-x

type: float64 examples: [1029.0, 1031.0, 1034.0]

Applied Loads-y

type: int64 examples: [33, 74, 11]

Applied Loads-fx

type: int64 examples: [0, 2, 4]

Applied Loads-fy

type: float64 examples: [0.0, 5.0, 7.0]

Applied Loads-fz

type: float64 examples: [0.0, -498.0, -1001.0]

Sheet "NONSTD_SHEAR_PANEL/Applied Loads Windows"

Applied Loads Windows-1

type: int64 examples: [1, 2, 3]

Sheet "NONSTD_SHEAR_PANEL/rolling"

rolling-loading

type: int64 examples: [0, 2, 4]

rolling-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/reactions"

reactions-reactions

type: float64 examples: [0.0, 896.045037079904, -0.4657175608393029]

reactions-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/sb_distances"

sb_distances-dist

type: int64 examples: [0, 97, 34]

sb_distances-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/shearsum_by_rail"

shearsum_by_rail-loading

type: int64 examples: [0, 3008, 1]

shearsum_by_rail-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/glob_reactions"

glob_reactions-RBL108

type: float64 examples: [0.0, -0.7220346793552821, 8.881784197001252e-16]

glob_reactions-LBL108

type: float64 examples: [0.0, 1504.152249482421, -0.2779653206447179]

glob_reactions-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/Panel Shear"

Panel Shear-rail

type: object examples: ['LBL11', 'RBL74', 'RBL11']

Panel Shear-fx

type: int64 examples: [0, 2, 4]

Panel Shear-shear_force

type: float64 examples: [0.0, 0.5697851969339354, 0.8477505175785609]

Panel Shear-shear_flow

type: float64 examples: [0.0, 0.3637610790629695, -0.3505246352227448]

Panel Shear-shear_flow_abs

type: float64 examples: [0.0, 0.3637610790629695, 0.3505246352227448]

Panel Shear-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/wids"

wids-wid

type: int64 examples: [0, 1, 2]

Sheet "NONSTD_SHEAR_PANEL/MS"

MS-1

type: int64 examples: [1, 2, 3]

Sheet "NONSTD_SHEAR_PANEL/MS_reduced"

MS_reduced-index

type: int64 examples: [96, 97, 91]

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-shear_flow

type: float64 examples: [-55.40476190476191, 10.77547107611747, -85.78571428571429]

MS_reduced-wid

type: int64 examples: [49, 43, 13]

MS_reduced-allowable

type: int64 examples: [105, 299, 196]

The allowable value of the \(allowable / applied - 1\) MS equation

MS_reduced-wstart

type: float64 examples: [1089.25, 1115.0, 963.25]

MS_reduced-zone

type: int64 examples: [1]

MS_reduced-section

type: object examples: ['section 43']

MS_reduced-MS

type: float64 examples: [2.485428809325562, 2.537602062741728, 10.57840794151793]

The dressed (cf. dressing) version of the _MS column.

“NONSTD_FY”:

Checker ID: 17

Sheet "NONSTD_FY/xdata"

xdata-value

type: float64 examples: [0.0, 2.0, 4.0]

xdata-section

type: object examples: ['section 43']

Sheet "NONSTD_FY/MS_step1"

MS_step1-LBL108

type: object examples: ['LBL11', 'RBL74', 'RBL11']

Sheet "NONSTD_FY/MS_step2"

MS_step2-LBL108

type: object examples: ['LBL108', 'RBL108']

Sheet "NONSTD_FY/SideLoads"

SideLoads-f2

type: float64 examples: [0.0, 4.0, 5.0]

SideLoads-section

type: object examples: [nan, 'section 43']

SideLoads-f2_allowable

type: int64 examples: [400, 250]

SideLoads-MS

type: float64 examples: [0.06837606837606836, 1.358490566037736, 2.048780487804878]

The dressed (cf. dressing) version of the _MS column.

SideLoads-item-details

type: object examples: ['x=1139.5', 'x=968.2', 'x=1120.0']

Sheet "NONSTD_FY/MS_step1_reduced"

MS_step1_reduced-index

type: int64 examples: [1279, 199, 1287]

MS_step1_reduced-lcid

type: int64 examples: [4, 5]

MS_step1_reduced-x

type: int64 examples: [1120, 994, 1036]

MS_step1_reduced-f2

type: int64 examples: [320, 240]

MS_step1_reduced-section

type: object examples: ['section 43']

MS_step1_reduced-f2_allowable

type: int64 examples: [250]

MS_step1_reduced-MS

type: float64 examples: [-0.21875, 0.04166666666666674]

The dressed (cf. dressing) version of the _MS column.

MS_step1_reduced-item-details

type: object examples: ['x=1078.0', 'x=1120.0', 'x=952.0']

Sheet "NONSTD_FY/MS_step2_reduced"

MS_step2_reduced-index

type: int64 examples: [34]

MS_step2_reduced-lcid

type: int64 examples: [5]

MS_step2_reduced-x

type: int64 examples: [1120]

MS_step2_reduced-axis

type: object examples: ['f2']

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

MS_step2_reduced-value

type: int64 examples: [320]

MS_step2_reduced-section

type: object examples: ['section 43']

MS_step2_reduced-ALW

type: int64 examples: [1100]

MS_step2_reduced-MS

type: float64 examples: [2.4375]

The dressed (cf. dressing) version of the _MS column.

MS_step2_reduced-item-details

type: object examples: ['x=1120.0']

Standard Outputs

“STD_FX”:

Checker ID: 18

Sheet "STD_FX/loading"

loading-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_FX/allowable"

allowable-alw_id

type: int64 examples: [1, 15, 7]

allowable-nx_alw

type: int64 examples: [0, 66, 72]

allowable-pax_conf

type: object examples: ['3-4-3', '2-4-2']

Sheet "STD_FX/MS"

MS-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_FX/MS_reduced"

MS_reduced-index

type: int64 examples: [2, 134, 358]

MS_reduced-item

type: object examples: ['S61@54L', 'S83@44C', 'S66@56R']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-point_id

type: int64 examples: [4, 5, 6]

MS_reduced-gid

type: int64 examples: [52485, 52360, 52521]

MS_reduced-rail

type: object examples: ['LBL11', 'LBL74', 'LBL33']

MS_reduced-fy

type: float64 examples: [0.0, -71.1, -78.5]

MS_reduced-fx

type: float64 examples: [-2042.0, -2681.2, -4184.4]

MS_reduced-f1

type: float64 examples: [-2042.2089365242, -2681.2, -4184.4]

MS_reduced-zone

type: int64 examples: [4]

MS_reduced-x

type: float64 examples: [1986.515, 2378.515, 2347.515]

MS_reduced-y

type: float64 examples: [74.0, -11.0, -74.0]

MS_reduced-section

type: object examples: ['section 47', 'section 46']

MS_reduced-nx_alw

type: int64 examples: [144, 66, 56]

MS_reduced-pax_conf

type: object examples: ['3-4-3', '2-4-2']

MS_reduced-nx_app

type: float64 examples: [134.9806451612903, 139.4411764705882, 82.79354838709678]

MS_reduced-MS

type: float64 examples: [0.032693524572875, 0.06649224819616828, 0.06681961571551476]

The dressed (cf. dressing) version of the _MS column.

MS_reduced-item-details

type: object examples: [' pnt5@LBL33', ' pnt4@LBL74', ' pnt6@LBL11']

MS_reduced-comments

type: object examples: ['alw ID#1', 'alw ID#15']

MS_reduced-result_id

type: int64 examples: [0, 1, 2]

MS_reduced-_result_id_legend

type: object examples: ['result_id=4; MS=+0.11', 'result_id=7; MS=+0.14', 'result_id=3; MS=+0.06']

“STD_CUM_FX”:

Checker ID: 19

Sheet "STD_CUM_FX/allowable"

allowable-S45@44L

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_CUM_FX/loading"

loading-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_CUM_FX/MS"

MS-S83@44C

type: object examples: ['S49@43L', 'S81@54C', 'S46@44R']

Sheet "STD_CUM_FX/MS_reduced"

MS_reduced-index

type: int64 examples: [54]

MS_reduced-item

type: object examples: ['S81@47C']

MS_reduced-merged_item

type: object examples: ['S81@47C']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-point_id

type: int64 examples: [6]

MS_reduced-section

type: object examples: ['section 46']

MS_reduced-zone

type: int64 examples: [4]

MS_reduced-rail

type: object examples: ['LBL11']

MS_reduced-fx

type: float64 examples: [-2681.2]

MS_reduced-f1

type: float64 examples: [-2681.2]

MS_reduced-x

type: float64 examples: [2099.515]

MS_reduced-leg_order

type: int64 examples: [1]

MS_reduced-f1_cumul

type: int64 examples: [-8568]

MS_reduced-seat type

type: object examples: ['reg. seat; alw ID#1']

MS_reduced-nx_alw

type: int64 examples: [290]

MS_reduced-pax_conf

type: object examples: ['3-4-3']

MS_reduced-nx_app

type: float64 examples: [-276.3870967741935]

MS_reduced-MS

type: float64 examples: [0.04925303454715224]

The dressed (cf. dressing) version of the _MS column.

MS_reduced-item-details

type: object examples: ['aft leg']

MS_reduced-result_id

type: int64 examples: [2]

MS_reduced-_result_id_legend

type: object examples: ['result_id=2; MS=+0.04']

“STD_FY”:

Checker ID: 20

Sheet "STD_FY/loading"

loading-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_FY/MS_step1"

MS_step1-LBL108

type: object examples: ['LBL11', 'RBL74', 'RBL11']

Sheet "STD_FY/MS_step1_failed"

MS_step1_failed-index

type: int64 examples: [1549, 1551, 1565]

MS_step1_failed-item

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

MS_step1_failed-point_id

type: int64 examples: [3, 4, 5]

MS_step1_failed-leg_order

type: int64 examples: [1]

MS_step1_failed-gid

type: int64 examples: [52348, 52349, 52350]

MS_step1_failed-f1

type: float64 examples: [0.0, -64.1483203197, -64.8271951525]

MS_step1_failed-f2

type: float64 examples: [-407.2919911942, -407.3188981236, -437.8559624304]

MS_step1_failed-f3

type: float64 examples: [-620.9, 150.1, 150.0]

MS_step1_failed-zone

type: int64 examples: [4]

MS_step1_failed-x

type: float64 examples: [2316.515, 2192.515, 2068.515]

MS_step1_failed-y

type: float64 examples: [11.0, -108.0, -102.2762268708]

MS_step1_failed-section

type: object examples: ['section 47', 'section 46']

MS_step1_failed-f2_allowable

type: int64 examples: [400, 250]

MS_step1_failed-MS

type: float64 examples: [-0.57997311827957, -0.5466086325716358, -0.4290359811196151]

The dressed (cf. dressing) version of the _MS column.

Sheet "STD_FY/MS_step2"

MS_step2-LBL33

type: object examples: ['LBL11', 'RBL74', 'RBL11']

Sheet "STD_FY/SideLoads"

SideLoads-index

type: int64 examples: [1548, 1549, 1550]

SideLoads-item

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

SideLoads-point_id

type: int64 examples: [3, 4, 5]

SideLoads-leg_order

type: int64 examples: [1]

SideLoads-gid

type: int64 examples: [52348, 52349, 52350]

SideLoads-f1

type: float64 examples: [-2176.9590391442, 0.0, -2042.2089365242]

SideLoads-f2

type: float64 examples: [0.0, -370.4, -595.2]

SideLoads-f3

type: float64 examples: [2560.0, -125.2, 2053.0]

SideLoads-zone

type: int64 examples: [4]

SideLoads-x

type: float64 examples: [2316.515, 2192.515, 2068.515]

SideLoads-y

type: float64 examples: [11.0, -108.0, -102.2762268708]

SideLoads-section

type: object examples: ['section 47', 'section 46']

SideLoads-f2_allowable

type: int64 examples: [400, 250]

SideLoads-MS

type: float64 examples: [-0.57997311827957, -0.5466086325716358, 2.439697128344971]

The dressed (cf. dressing) version of the _MS column.

Sheet "STD_FY/MS_step1_reduced"

MS_step1_reduced-level_0

type: int64 examples: [1, 3, 5]

MS_step1_reduced-lcid

type: int64 examples: [16]

MS_step1_reduced-loading_label

type: object examples: ['Y143_IFL', 'Y121_IFL', 'Y127_IFL']

MS_step1_reduced-index

type: int64 examples: [1549, 1551, 1565]

MS_step1_reduced-item

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

MS_step1_reduced-point_id

type: int64 examples: [3, 4, 5]

MS_step1_reduced-leg_order

type: int64 examples: [1]

MS_step1_reduced-gid

type: int64 examples: [52348, 52349, 52350]

MS_step1_reduced-f1

type: float64 examples: [0.0, -64.1483203197, 64.1483203197]

MS_step1_reduced-f2

type: float64 examples: [-407.2919911942, -407.3188981236, -437.4122481592]

MS_step1_reduced-f3

type: float64 examples: [-620.9, 150.1, 150.0]

MS_step1_reduced-zone

type: int64 examples: [4]

MS_step1_reduced-x

type: float64 examples: [2316.515, 2192.515, 2068.515]

MS_step1_reduced-y

type: float64 examples: [11.0, -108.0, -102.2762268708]

MS_step1_reduced-section

type: object examples: ['section 47', 'section 46']

MS_step1_reduced-f2_allowable

type: int64 examples: [400, 250]

MS_step1_reduced-MS

type: float64 examples: [-0.57997311827957, -0.5466086325716358, -0.4284567909287023]

The dressed (cf. dressing) version of the _MS column.

Sheet "STD_FY/MS_step2_reduced"

MS_step2_reduced-index

type: int64 examples: [137]

MS_step2_reduced-lcid

type: int64 examples: [16]

MS_step2_reduced-loading_label

type: object examples: ['Y101_IFL']

MS_step2_reduced-axis

type: object examples: ['f2']

The axis column shows the coordinates system axis used for the calculated row. f1 is the X-axis of the rail involved in the calculation, whereas fx is the X-axis in the global AC coordinates system.

MS_step2_reduced-item

type: object examples: ['S45@44L']

MS_step2_reduced-point_id

type: int64 examples: [4]

MS_step2_reduced-leg_order

type: int64 examples: [1]

MS_step2_reduced-gid

type: int64 examples: [52365]

MS_step2_reduced-zone

type: int64 examples: [4]

MS_step2_reduced-x

type: float64 examples: [2015.515]

MS_step2_reduced-y

type: int64 examples: [-74]

MS_step2_reduced-section

type: object examples: ['section 46']

MS_step2_reduced-value

type: float64 examples: [-595.2]

MS_step2_reduced-ALW

type: int64 examples: [1100]

MS_step2_reduced-MS

type: float64 examples: [0.8481182795698923]

The dressed (cf. dressing) version of the _MS column.

“STD_FZ”:

Checker ID: 21

Sheet "STD_FZ/allowable"

allowable-alw_id

type: int64 examples: [1, 15, 7]

allowable-fz_alw

type: int64 examples: [0, 3255, 5411]

allowable-pax_conf

type: object examples: ['3-4-3', '2-4-2']

Sheet "STD_FZ/MS"

MS-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_FZ/MS_reduced"

MS_reduced-index

type: int64 examples: [0, 388, 356]

MS_reduced-item

type: object examples: ['S61@54L', 'S45@48L', 'S49@43L']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-point_id

type: int64 examples: [1, 2, 3]

MS_reduced-rail

type: object examples: ['RBL11', 'LBL74', 'LBL33']

MS_reduced-fz

type: float64 examples: [-2053.0, 4999.1, -3285.7]

MS_reduced-f3

type: float64 examples: [2629.1, 2053.0, 4999.1]

MS_reduced-zone

type: int64 examples: [4]

MS_reduced-section

type: object examples: ['section 47', 'section 46']

MS_reduced-fz_alw

type: int64 examples: [3659, 2295, 6105]

MS_reduced-pax_conf

type: object examples: ['3-4-3', '2-4-2']

MS_reduced-MS

type: float64 examples: [-0.00948905109489051, 0.03229241945913053, 0.04100341375474659]

The dressed (cf. dressing) version of the _MS column.

MS_reduced-item-details

type: object examples: [' pnt2@LBL74', ' pnt3@RBL11', ' pnt4@LBL74']

MS_reduced-comments

type: object examples: ['alw ID#1', 'alw ID#15']

MS_reduced-result_id

type: int64 examples: [0, 1, 2]

MS_reduced-_result_id_legend

type: object examples: ['result_id=9; MS=+0.11', 'result_id=0; MS=+0.19', 'result_id=2; MS=+0.04']

“STD_CUM_FZ”:

Checker ID: 22

Sheet "STD_CUM_FZ/allowable"

allowable-S61@54L

type: object examples: ['S61@54L', 'S62@54R', 'S66@56R']

Sheet "STD_CUM_FZ/loading"

loading-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_CUM_FZ/MS"

MS-S81@54C

type: object examples: ['S82@56C', 'S81@54C', 'S81@55C']

Sheet "STD_CUM_FZ/MS_reduced"

MS_reduced-index

type: int64 examples: [0]

MS_reduced-item

type: object examples: ['S81@54C']

MS_reduced-merged_item

type: object examples: ['S81@54C']

MS_reduced-lcid

type: int64 examples: [1]

MS_reduced-point_id

type: int64 examples: [1]

MS_reduced-zone

type: int64 examples: [4]

MS_reduced-section

type: object examples: ['section 47']

MS_reduced-rail

type: object examples: ['LBL33']

MS_reduced-fz

type: int64 examples: [-2053]

MS_reduced-f3

type: int64 examples: [-2053]

MS_reduced-x

type: int64 examples: [2300]

MS_reduced-leg_order

type: int64 examples: [0]

MS_reduced-f3_cumul

type: float64 examples: [-10974.6]

MS_reduced-fz_alw

type: int64 examples: [15438]

MS_reduced-pax_conf

type: object examples: ['2-4-2']

MS_reduced-MS

type: float64 examples: [0.406702749986332]

The dressed (cf. dressing) version of the _MS column.

MS_reduced-item-details

type: object examples: ['front leg']

MS_reduced-comments

type: object examples: ['alw ID#15']

MS_reduced-result_id

type: int64 examples: [0]

MS_reduced-_result_id_legend

type: object examples: ['result_id=0; MS=+0.40']

“STD_ITEM_MASS”:

Checker ID: 23

Sheet "STD_ITEM_MASS/mass_data"

mass_data-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_ITEM_MASS/MS"

MS-S83@44C

type: object examples: ['S61@54L', 'S49@43L', 'S66@56R']

Sheet "STD_ITEM_MASS/MS_reduced"

MS_reduced-index

type: int64 examples: [0, 1, 34]

MS_reduced-item

type: object examples: ['S61@54L', 'S83@44C', 'S49@43L']

MS_reduced-rowid

type: int64 examples: [43, 44, 45]

MS_reduced-yloc

type: object examples: ['l', 'r', 'c']

MS_reduced-x

type: float64 examples: [2021.0, 1990.0, 2311.9466867697]

MS_reduced-section

type: object examples: ['section 47', 'section 46']

MS_reduced-zone

type: int64 examples: [4]

MS_reduced-match

type: float64 examples: [0.6743, 1.0]

MS_reduced-l_mass_alw

type: int64 examples: [136, 204, 190]

MS_reduced-c_mass_alw

type: int64 examples: [272, 244]

MS_reduced-r_mass_alw

type: int64 examples: [136, 204, 190]

MS_reduced-row_mass_alw

type: int64 examples: [680, 544, 611]

MS_reduced-reference

type: object examples: ['Table E-5']

MS_reduced-masw

type: int64 examples: [136, 204, 272]

MS_reduced-pax_conf

type: object examples: ['2-4-2', '1-2-1']

MS_reduced-lcid

type: int64 examples: [-1]

MS_reduced-MS

type: float64 examples: [0.05263157894736836, 0.2728221178925405, 0.2708333333333333]

The dressed (cf. dressing) version of the _MS column.

MS_reduced-comments

type: object examples: ['row50L', 'row44C', 'row43L']

MS_reduced-result_id

type: int64 examples: [0, 1, 2]

MS_reduced-_result_id_legend

type: object examples: ['result_id=4; MS=+0.82', 'result_id=1; MS=+1.04', 'result_id=8; MS=+0.05']

“STD_ROW_MASS”:

Checker ID: 24

Sheet "STD_ROW_MASS/mass_data"

mass_data-S45@44L

type: object examples: ['S61@54L', 'S49@43L', 'S62@54R']

Sheet "STD_ROW_MASS/MS"

MS-4

type: int64 examples: [4]

Sheet "STD_ROW_MASS/MS_reduced"

MS_reduced-result_id

type: int64 examples: [0, 1, 2]

MS_reduced-item

type: object examples: ['row#55', 'row#47', 'row#49']

MS_reduced-section

type: object examples: ['section 47', 'section 46']

MS_reduced-mass

type: float64 examples: [450.0, 387.6, 391.4]

MS_reduced-mass_alw

type: int64 examples: [544, 611, 680]

MS_reduced-MS

type: float64 examples: [0.1463414634146341, 0.3877551020408163, 0.7491961414790997]

The dressed (cf. dressing) version of the _MS column.

“STD_LIP_LOADS”:

Checker ID: 25
